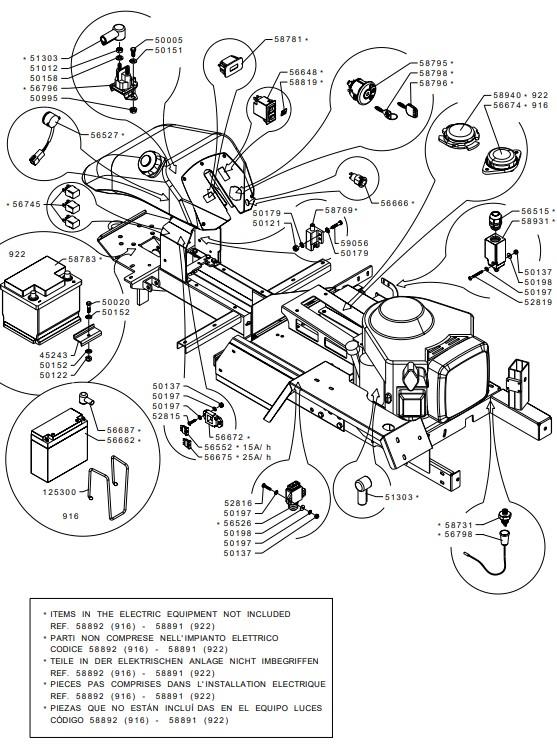

ELECTRIC EQUIPMENT (from sn 544707 to sn 573106 from 2011 to 2013)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
4524345243SMALL PLATE£6.17 Add to
5000550005SHAFT -INPUT£1.53 Add to
5002050020SCREW£1.44 Add to
5012150121NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013750137NUT£1.30 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015850158WASHER£1.34 Add to
5017950179WASHER£1.30 Add to
5019750197WASHER£1.29 Add to
5019850198WASHER£2.82 Add to
5099550995NUT£1.32 Add to
5101251012NUT£1.54 Add to
5130351303INSULATING CAP£2.81 Add to
5281552815SCREW£1.41 Add to
5281652816SCREW£1.32 Add to
5281952819SCREW£1.41 Add to
5651556515UNION£2.51 Add to
5652656526MICRO-SWITCH£25.17 Add to
5652756527WARNING HORN£32.10 Add to
5655256552FUSE£2.48 Add to
5664856648SWITCH£57.37 Add to
5666256662DRY BATTERY£128.27 Add to
5667256672SMALL PLATE£4.03 Add to
5667456674MICRO-SWITCH£43.39 Add to
5667556675FUSE£2.48 Add to
5668756687INSULATING CAP£2.31 Add to
5674556745RELAY£11.64 Add to
5679656796RELAY£45.01 Add to
5679856798CABLE£11.74 Add to
5873158731PRESSURE SWITCH£27.13 Add to
5876958769MICRO-SWITCH£22.34 Add to
5878358783BATTERY£149.39 Add to
5879558795IGNITION SWITCH£27.18 Add to
5879658796IGNITION KEY£8.56 Add to
5879858798IGNITION KEY£6.12 Add to
5881958819PLATE£4.01 Add to
5893158931MICRO-SWITCH£67.64 Add to
5894058940SEAT MICRO-SWITCH£36.58 Add to
5905659056SCREW£1.45 Add to
