ELECTRIC STARTER 1IM350 - 6LD400 (from sn 228001 to sn 525152 from 1996 to 2010)

Parts list

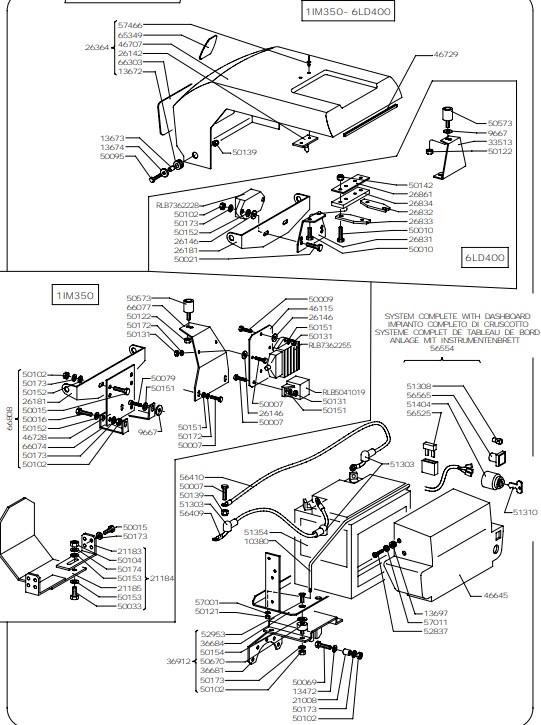

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1038010380BATTERY TIEROD£10.27 Add to
1347213472WASHER£3.19 Add to
1367213672SHOCK ABSORBER£3.93 Add to
1367313673SPACER£2.73 Add to
1367413674WASHER£3.43 Add to
2100821008SPACER£4.95 Add to
2118421184BUMPER£60.64 Add to
2614626146WASHER£3.64 Add to
2683126831SUPPORT£19.74 Add to
2683226832SMALL PLATE£11.78 Add to
2683326833SMALL PLATE£9.32 Add to
2683426834SHOCK ABSORBER£10.58 Add to
2686126861SMALL PLATE£15.11 Add to
3351333513SUPPORT£21.39 Add to
3691236912SUPPORT£145.54 Add to
4664546645DASHBOARD£92.36 Add to
5000750007SCREW£1.50 Add to
5000950009SCREW£1.42 Add to
5001050010SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5003350033SCREW£1.66 Add to
5006950069SCREW£1.59 Add to
5007950079SCREW£1.49 Add to
5009550095SCREW£1.42 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5012150121NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5013950139NUT£1.34 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5057350573RUBBER PAD£6.29 Add to
5067050670SHOCK ABSORBER£8.74 Add to
5130351303INSULATING CAP£2.81 Add to
5130851308BULB£3.39 Add to
5131051310IGNITION KEY£4.81 Add to
5135451354BATTERY£181.48 Add to
5140451404SWITCH£79.41 Add to
5283752837SCREW£1.36 Add to
5295352953SCREW£1.58 Add to
5652556525FUSE£5.67 Add to
5655456554ELECTRIC SYSTEM£223.35 Add to
5656556565WARNING LIGHT£22.01 Add to
5700157001WASHER£1.36 Add to
5701157011WASHER£1.30 Add to
5746657466RIVET£1.59 Add to
6534965349STICKER£5.61 Add to
96679667WASHER£2.29 Add to
RLB7362228RLB7362228ADJUSTER£154.31 Add to
