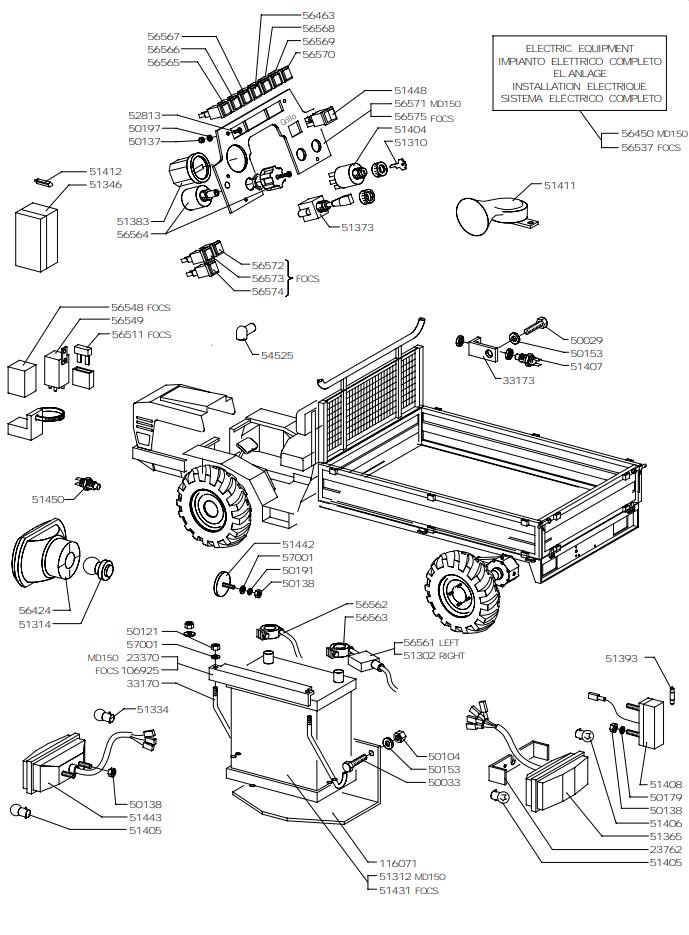

ELECTRICAL EQUIPMENT(from sn 129701 from 1986)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
106925106925SUPPORT£16.48 Add to
2337023370SUPPORT£13.24 Add to
3317033170BATTERY TIEROD£8.24 Add to
5002950029SCREW£1.61 Add to
5003350033SCREW£1.66 Add to
5010450104NUT£1.44 Add to
5012150121NUT£1.36 Add to
5013750137NUT£1.30 Add to
5013850138NUT£1.30 Add to
5015350153WASHER£1.34 Add to
5017950179WASHER£1.30 Add to
5019750197WASHER£1.29 Add to
5131051310IGNITION KEY£4.81 Add to
5131251312DRY BATTERY£153.83 Add to
5131451314BULB£13.26 Add to
5133451334BULB£4.64 Add to
5134651346FUSE BOX£36.33 Add to
5136551365LIGHT£40.84 Add to
5137351373SWITCH DIRECTION INDICAT£31.08 Add to
5138351383HOUR-METER£168.17 Add to
5139351393BULB£4.03 Add to
5140451404SWITCH£79.41 Add to
5140751407SWITCH£36.21 Add to
5140851408LIGHT£32.02 Add to
5143151431BATTERY£181.05 Add to
5144351443LIGHT£31.89 Add to
5144851448SWITCH£28.10 Add to
5145051450SWITCH£52.37 Add to
5281352813SCREW£1.30 Add to
5642456424LIGHT£60.06 Add to
5646356463WARNING LIGHT£5.85 Add to
5651156511FUSE£5.67 Add to
5654956549SWITCH£40.89 Add to
5656456564ELECTRONIC CONTROL PANELS£47.38 Add to
5656556565WARNING LIGHT£22.01 Add to
5656656566WARNING LIGHT£7.98 Add to
5656756567WARNING LIGHT£7.98 Add to
5657456574WARNING LIGHT£7.98 Add to
5700157001WASHER£1.36 Add to
