ENGINE B&S 3130 CLUTCH AND THROTTLE (from sn 678585 from 2019)

Parts list

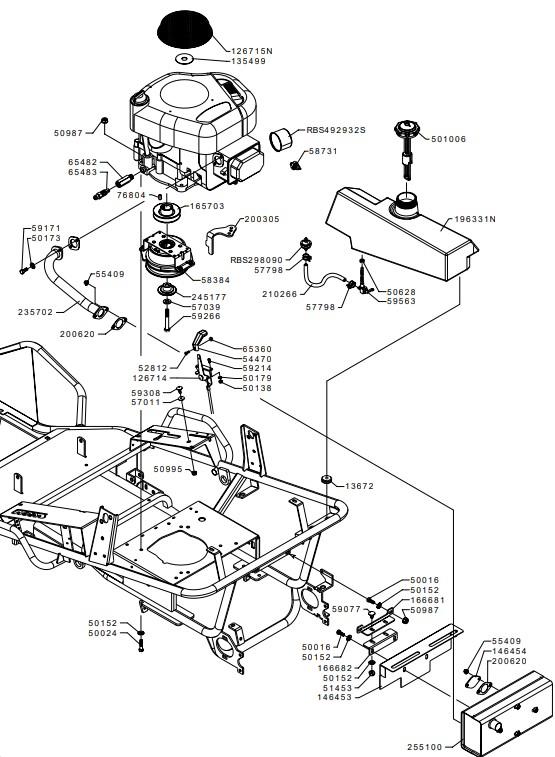

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126714126714ACCELERATOR CONTRL LEVER£17.45 Add to
126715N126715NGUARD£17.12 Add to
135499135499SPACER£2.76 Add to
1367213672SHOCK ABSORBER£3.93 Add to
146453146453GUARD PLATE£15.44 Add to
165703165703ENGINE PULLEY CLS7 EC£49.35 Add to
166681166681BRACKET£18.69 Add to
196331N196331NTANK£142.01 Add to
200305200305CLUTCH LOCK PLATE£7.33 Add to
200620200620GASKET£3.23 Add to
235702235702MANIFOLD£38.23 Add to
245177245177WASHER£11.49 Add to
255100255100MUFFLER£128.63 Add to
500080500080TOOL KIT£5.19 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
501006501006TANK CAP£61.95 Add to
5013850138NUT£1.30 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017950179WASHER£1.30 Add to
5062850628GASKET£1.55 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5281252812SCREW£1.30 Add to
5540955409NUT£1.58 Add to
5701157011WASHER£1.30 Add to
5703957039WASHER£1.97 Add to
5779857798CLAMP£1.49 Add to
5838458384CLUTCH£399.96 Add to
5873158731PRESSURE SWITCH£27.13 Add to
5907759077SCREW£1.74 Add to
5917159171SCREW£1.88 Add to
5921459214SCREW£1.45 Add to
5926659266SCREW£3.84 Add to
5930859308SCREW£1.92 Add to
5956359563TAP£14.77 Add to
6536065360NUT£2.53 Add to
6548265482EXTENSION£10.94 Add to
6548365483STEM£9.56 Add to
7680476804FEATHER KEY£2.71 Add to
RBS298090RBS298090FUEL FILTER£13.00 Add to
RBS492932SRBS492932SOIL FILTER£38.58 Add to
