ENGINE B&S VANGUARD 16HP (from sn 571989 from 2013)

Parts list

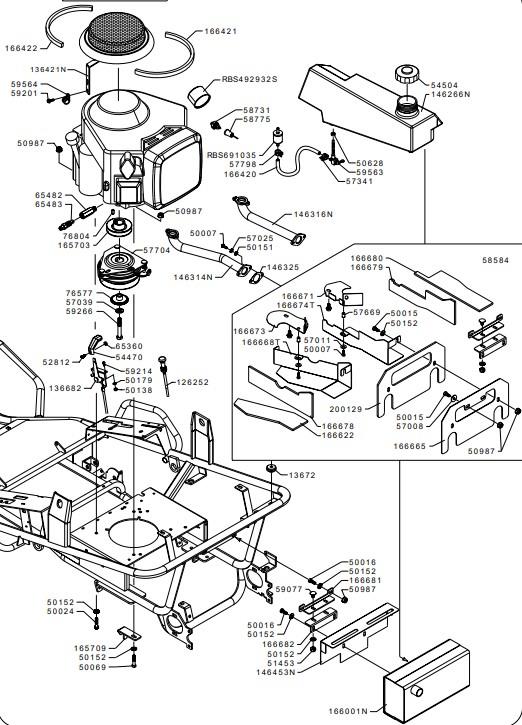

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126252126252STARTER CONTROL LEVER£40.82 Add to
136421N136421NENGINE GRID£64.23 Add to
136682136682ACCELERATOR CONTROL LEVER£18.50 Add to
1367213672SHOCK ABSORBER£3.93 Add to
146266N146266NTANK£173.73 Add to
146314N146314NMANIFOLD£62.31 Add to
146316N146316NMANIFOLD£62.31 Add to
165703165703ENGINE PULLEY CLS7 EC£49.35 Add to
165709165709CLUTCH LOCK PLATE£8.04 Add to
166420166420PIPE£10.79 Add to
166421166421GASKET£3.54 Add to
166422166422GASKET£3.21 Add to
166622166622INSULATOR£5.99 Add to
166665166665GUARD£17.96 Add to
166671166671DEFLECTOR£5.99 Add to
166673166673DEFLECTOR£5.99 Add to
166678166678INSULATOR£14.74 Add to
166679166679INSULATOR£8.78 Add to
166680166680INSULATOR£5.99 Add to
166681166681BRACKET£18.69 Add to
200129200129INSULATOR£21.51 Add to
200620200620GASKET£3.23 Add to
5000750007SCREW£1.50 Add to
500080500080TOOL KIT£5.19 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5006950069SCREW£1.59 Add to
5013850138NUT£1.30 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017950179WASHER£1.30 Add to
5062850628GASKET£1.55 Add to
5098750987NUT£2.72 Add to
5145351453NUT£1.36 Add to
5281252812SCREW£1.30 Add to
5450454504TANK CAP£29.18 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5702557025WASHER£1.34 Add to
5703957039WASHER£1.97 Add to
5734157341CLAMP£1.42 Add to
5766957669THREADED INSERT£1.64 Add to
5770457704CLUTCH£436.77 Add to
5779857798CLAMP£1.49 Add to
5858458584TOOL KIT£137.54 Add to
5873158731PRESSURE SWITCH£27.13 Add to
5877558775CABLE£11.50 Add to
5907759077SCREW£1.74 Add to
5920159201SCREW£1.39 Add to
5921459214SCREW£1.45 Add to
5926659266SCREW£3.84 Add to
5956359563TAP£14.77 Add to
5956459564CLAMP£3.36 Add to
6536065360NUT£2.53 Add to
6548265482EXTENSION£10.94 Add to
6548365483STEM£9.56 Add to
7657776577WASHER£19.69 Add to
7680476804FEATHER KEY£2.71 Add to
RBS492932SRBS492932SOIL FILTER£38.58 Add to
RBS691035RBS691035FILTERING ELEMENT£21.77 Add to
