ENGINE GR 452 (from sn 715510 from 2021)

Parts list

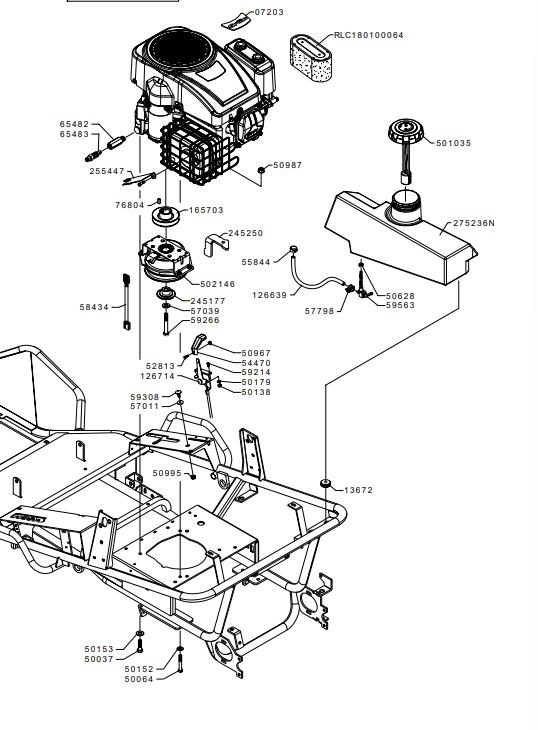

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1134411344WASHER£2.95 Add to
126006126006TANK£133.55 Add to
126714126714ACCELERATOR CONTRL LEVER£17.45 Add to
1367213672SHOCK ABSORBER£3.93 Add to
165703165703ENGINE PULLEY CLS7 EC£49.35 Add to
166420166420PIPE£10.79 Add to
20622062WASHER£3.77 Add to
245177245177WASHER£11.49 Add to
245250245250CLUTCH LOCK PLATE£5.46 Add to
255243255243MUFFLER PROTECTION£51.41 Add to
500080500080TOOL KIT£5.19 Add to
5001650016SCREW£18.80 Add to
5003750037SCREW£1.76 Add to
5006450064SCREW£1.85 Add to
5007550075SCREW£1.42 Add to
5013850138NUT£1.30 Add to
5013950139NUT£1.34 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017950179WASHER£1.30 Add to
502146502146CLUTCH£389.92 Add to
5062850628GASKET£1.55 Add to
5096750967NUT£1.41 Add to
5098750987NUT£2.72 Add to
5176451764TAP£10.81 Add to
5281352813SCREW£1.30 Add to
5450454504TANK CAP£29.18 Add to
5584455844CLAMP£1.03 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5703957039WASHER£1.97 Add to
5734157341CLAMP£1.42 Add to
5843458434ELECTRIC CABLE£10.42 Add to
5921459214SCREW£1.45 Add to
5926659266SCREW£3.84 Add to
5930859308SCREW£1.92 Add to
6548265482EXTENSION£10.94 Add to
6548365483STEM£9.56 Add to
7680476804FEATHER KEY£2.71 Add to
RLC180100064RLC180100064FILTER ELEMENT£17.16 Add to
