ENGINE HONDA GX270 - GR300 - R300D

Parts list

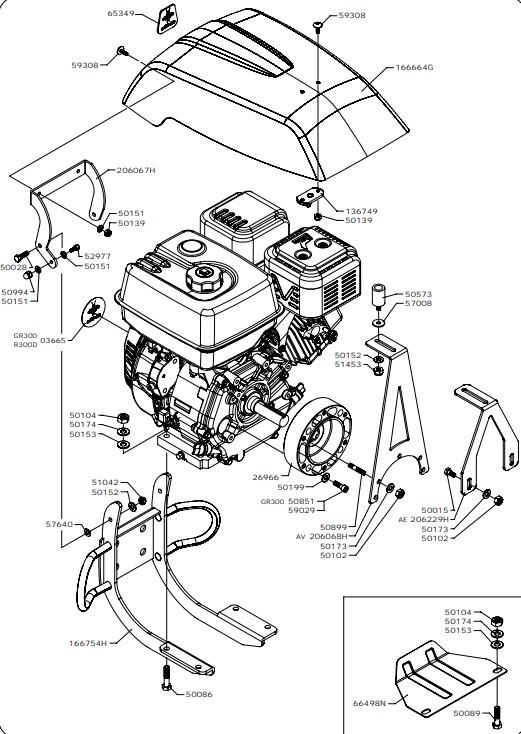

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0366503665STICKER£3.30 Add to
136749136749SMALL PLATE£8.53 Add to
166664G166664GHOOD£118.69 Add to
166754H166754HBUMPER£122.35 Add to
206067H206067HCOWLING HINGE£22.73 Add to
206068H206068HSUPPORT£41.71 Add to
206229H206229HSUPPORT£29.00 Add to
2696626966FLANGE£91.00 Add to
5001550015SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5008650086SCREW£1.86 Add to
5008950089SCREW£1.85 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5019950199WASHER£1.58 Add to
5057350573RUBBER PAD£6.29 Add to
5085150851SCREW£1.58 Add to
5089950899STUD£2.04 Add to
5099450994NUT£1.45 Add to
5145351453NUT£1.36 Add to
5297752977SCREW£1.44 Add to
5700857008WASHER£1.35 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
5902959029SCREW£3.67 Add to
5930859308SCREW£1.92 Add to
6534965349STICKER£5.61 Add to
66498N66498NSEAL OIL PROTECTION£24.34 Add to
