ESM CENTRAL CUTTER BAR 117 - 137CM (from sn 228001 from 1996)

Parts list

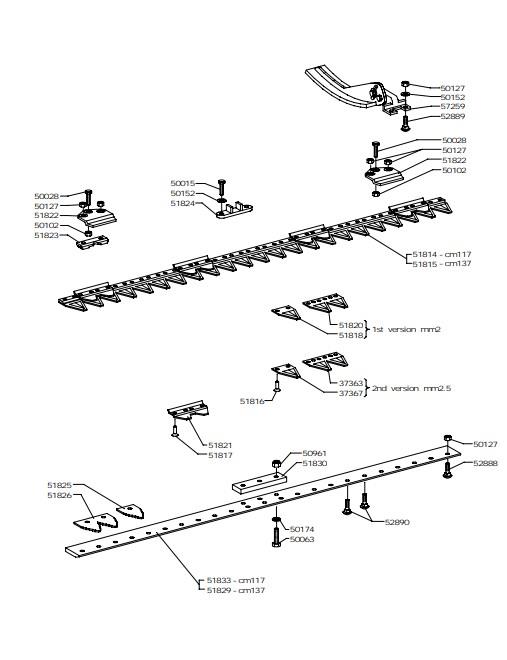

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
3736337363SECTION£28.92 Add to
3736737367SECTION£9.03 Add to
5001550015SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5006350063SCREW£1.61 Add to
5010250102NUT£1.36 Add to
5012750127NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5017450174WASHER£1.50 Add to
5096150961NUT£1.61 Add to
5181451814CUTTING BLADE£232.81 Add to
5181551815CUTTING BLADE£261.85 Add to
5181651816RIVET£1.59 Add to
5181851818SECTION£11.57 Add to
5182051820SECTION£21.58 Add to
5182151821CUTTERBAR WEAR PLATE£16.05 Add to
5182251822HOLD-DOWN CLIP£49.43 Add to
5182351823GUIDE£13.73 Add to
5182451824CYLINDER HEAD£89.20 Add to
5182651826PLATE£50.66 Add to
5183051830SPACER£110.69 Add to
5288952889SCREW£0.71 Add to
5725957259SLIDE£53.66 Add to
