FORWARD LEVER (from sn 653947 from 2018)

Parts list

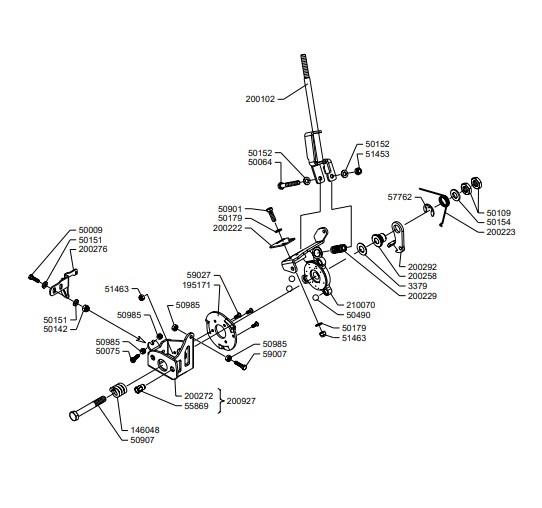

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
146048146048LEVER SPRING£8.58 Add to
195171195171DISK£16.70 Add to
200102200102ROD£24.57 Add to
200222200222BRACKET£8.68 Add to
200223200223SPRING£6.22 Add to
200229200229BUSHING£13.08 Add to
200258200258BUSHING£10.04 Add to
200276200276BRACKET£8.68 Add to
200292200292BRACKET£6.96 Add to
200927200927SUPPORT£50.94 Add to
210070210070LEVER£87.52 Add to
33793379SPACER£2.38 Add to
5000950009SCREW£1.42 Add to
5006450064SCREW£1.85 Add to
5007550075SCREW£1.42 Add to
5010950109NUT£1.52 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017950179WASHER£1.30 Add to
5049050490BALL£2.36 Add to
5090150901SCREW£1.42 Add to
5090750907SCREW£2.90 Add to
5098550985NUT£1.30 Add to
5145351453NUT£1.36 Add to
5146351463NUT£1.34 Add to
5586955869THREADED INSERT£2.03 Add to
5776257762RING SNAP£1.86 Add to
5900759007SCREW£1.40 Add to
5902759027SCREW£1.41 Add to
