FRAME(1)(from s/n 536678 from 2010)

Parts list

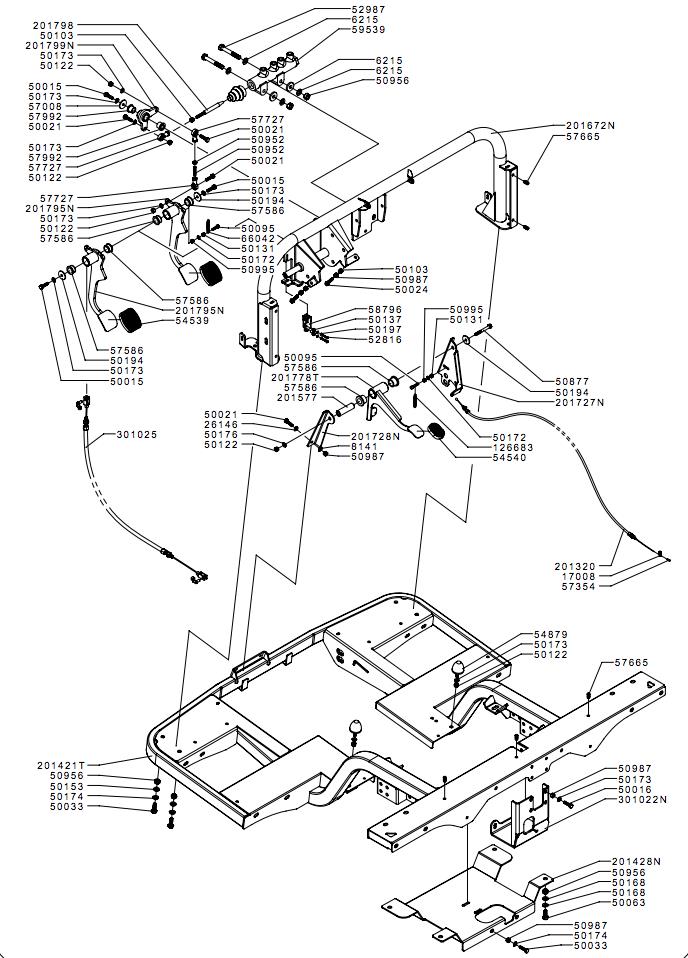

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126683126683SPRING£9.65 Add to
1700817008BAFFLE-RR-CHUTE£44.26 Add to
201320201320WIRE£28.67 Add to
2614626146WASHER£3.64 Add to
301025301025CABLE£155.28 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5003350033SCREW£1.66 Add to
5006350063SCREW£1.61 Add to
5009550095SCREW£1.42 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5013750137NUT£1.30 Add to
5015350153WASHER£1.34 Add to
5016850168WASHER£1.45 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017650176WASHER£1.60 Add to
5019450194WASHER£1.60 Add to
5019750197WASHER£1.29 Add to
5087750877SCREW£2.58 Add to
5095250952NUT£1.36 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5281652816SCREW£1.32 Add to
5298752987SCREW£2.37 Add to
5453954539DUST CAP£14.01 Add to
5454054540DUST CAP£6.79 Add to
5700857008WASHER£1.35 Add to
5735457354BOOT£1.60 Add to
5758657586BUSHING£4.01 Add to
5766557665THREADED INSERT£2.41 Add to
5772757727CYLINDER HEAD£23.47 Add to
5799257992BUSHING£4.56 Add to
5879658796IGNITION KEY£8.56 Add to
5953959539PUMP£267.12 Add to
62156215WASHER£4.15 Add to
6604266042SPRING£8.52 Add to
81418141WASHER£3.84 Add to
