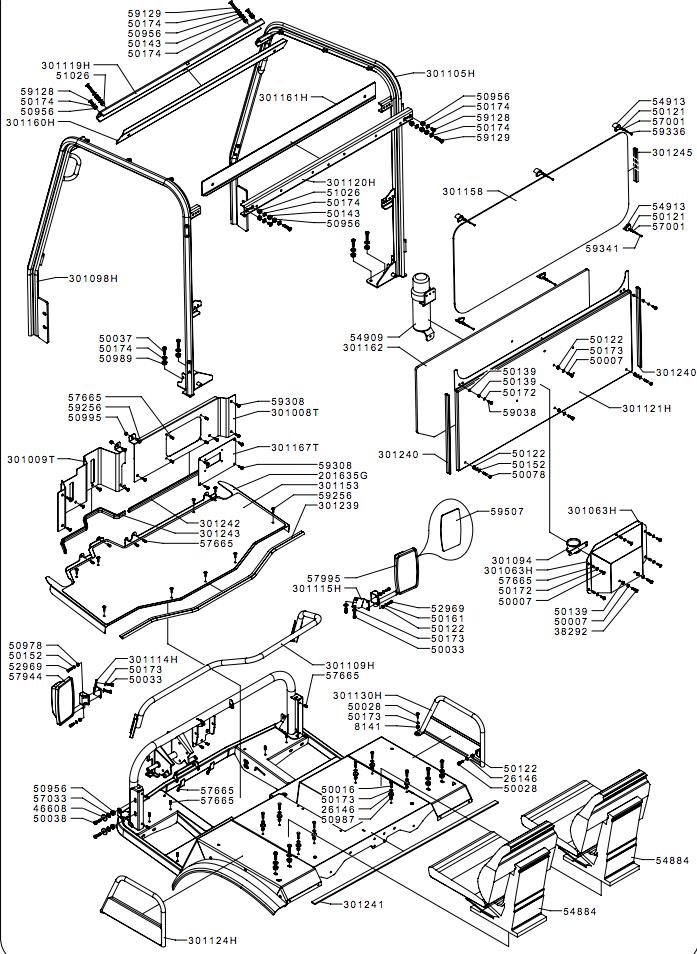

FRAME(3)(from s/n 536678 from 2010)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
2614626146WASHER£3.64 Add to
301094301094Pulley - Engine£30.05 Add to
301109H301109HHANDLE£111.94 Add to
301109H301109HHANDLE£111.94 Add to
301124H301124HHANDLE£105.03 Add to
301130H301130HHANDLE£105.03 Add to
301158301158GLASS£136.16 Add to
3829238292ROTARY HOE PINION£77.75 Add to
4660846608WASHER£3.44 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5003750037SCREW£1.76 Add to
5003850038SCREW£1.76 Add to
5007850078SCREW£1.69 Add to
5012150121NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5016150161WASHER£1.66 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5095650956NUT£1.47 Add to
5097850978NUT£1.75 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5296952969SCREW£1.49 Add to
5488454884SEAT£539.05 Add to
5490954909DOCUMENTS TUBE£37.71 Add to
5700157001WASHER£1.36 Add to
5703357033WASHER£2.27 Add to
5766557665THREADED INSERT£2.41 Add to
5794457944REAR VIEW MIRROR£102.79 Add to
5799557995REAR VIEW MIRROR£102.79 Add to
5912859128SCREW£1.71 Add to
5930859308SCREW£1.92 Add to
81418141WASHER£3.84 Add to
