FRAME AND CUTTING HEIGHT ADJUSTMENT LEVER (from sn 591342 to sn 608213 from 2015 to 2016)

Parts list

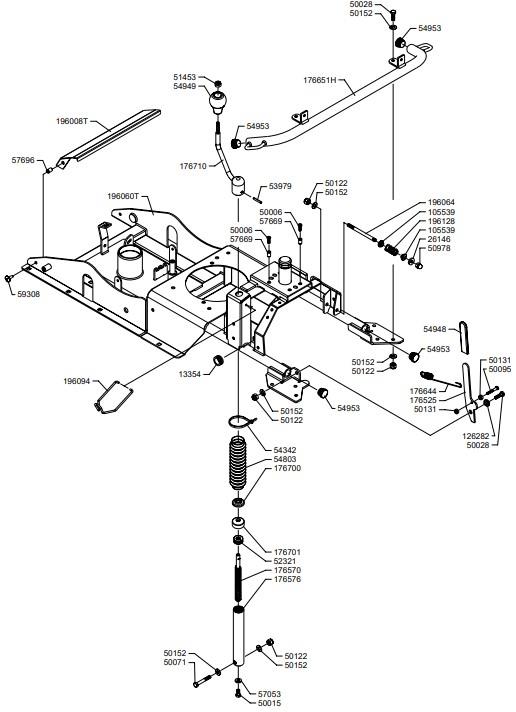

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105539105539BUSHING£8.58 Add to
126282126282BUSHING£5.96 Add to
1335413354RING£3.28 Add to
176570176570WORM SCREW£58.49 Add to
176576176576CYLINDER CUTTING HEIGHT ADJ.£65.23 Add to
176644176644BRAKE SPRING£16.90 Add to
176651H176651HBUMPER£66.39 Add to
176700176700BUSHING£8.82 Add to
176701176701BUSHING£9.68 Add to
176710176710CUT ADJUST. LEVER CL75£59.27 Add to
196060T196060TFRAME£671.40 Add to
196094196094STOP£10.70 Add to
196128196128SPRING£10.56 Add to
2614626146WASHER£3.64 Add to
5000650006SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5007150071SCREW£1.75 Add to
5009550095SCREW£1.42 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5097850978NUT£1.75 Add to
5145351453NUT£1.36 Add to
5232152321BEARING£8.51 Add to
5397953979PIN£1.75 Add to
5434254342CLAMP£1.89 Add to
5480354803RUBBER BELLOW£9.20 Add to
5494854948INSULATING CAP£4.27 Add to
5494954949KNOB£9.83 Add to
5495354953PLUG£0.50 Add to
5705357053WASHER£1.39 Add to
5766957669THREADED INSERT£1.64 Add to
5769657696THREADED INSERT£1.61 Add to
5930859308SCREW£1.92 Add to
