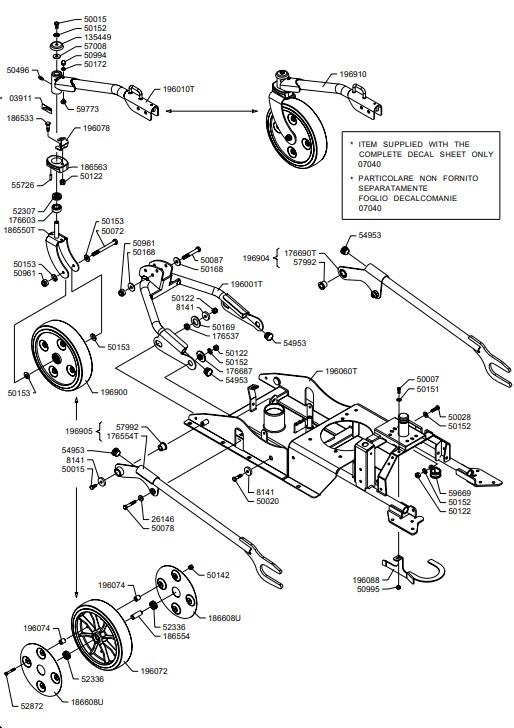

FRAME AND FRONT WHEEL (from sn 591342 from 2015)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0704007040STICKER£25.45 Add to
135449135449BOOT£4.07 Add to
176603176603SPACER£8.54 Add to
176687176687BUSHING£8.97 Add to
186533186533SCREW£7.03 Add to
186550T186550TYOKE£48.36 Add to
186554186554SPACER£5.87 Add to
186563186563PLUG£12.47 Add to
186608U186608UDISK£12.39 Add to
196001T196001TFRONT WHEEL PARALLELOGRAM£120.20 Add to
196060T196060TFRAME£671.40 Add to
196072196072WHEEL£43.12 Add to
196074196074SPACER£3.64 Add to
196078196078BRACKET£5.36 Add to
196088196088BRACKET£11.68 Add to
196900196900FRONT WHEEL ASSY£85.78 Add to
196904196904ARM£110.91 Add to
196905196905ARM£110.91 Add to
196910196910WHEEL SUPPORT£325.52 Add to
2614626146WASHER£3.64 Add to
5000750007SCREW£1.50 Add to
5001550015SCREW£1.44 Add to
5002050020SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5007250072SCREW£2.26 Add to
5007850078SCREW£1.69 Add to
5008750087SCREW£2.07 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5016850168WASHER£1.45 Add to
5016950169WASHER£1.66 Add to
5017250172WASHER£1.30 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5099450994NUT£1.45 Add to
5099550995NUT£1.32 Add to
5230752307BEARING£4.85 Add to
5233652336BEARING£6.29 Add to
5287252872SCREW£1.44 Add to
5495354953PLUG£0.50 Add to
5572655726PIN£1.49 Add to
5700857008WASHER£1.35 Add to
5799257992BUSHING£4.56 Add to
5966959669CLAMP£6.94 Add to
5977359773MAGNET£6.21 Add to
81418141WASHER£3.84 Add to
