FRAME AND RADIATOR(from s/n 585287 from 2014)

Parts list

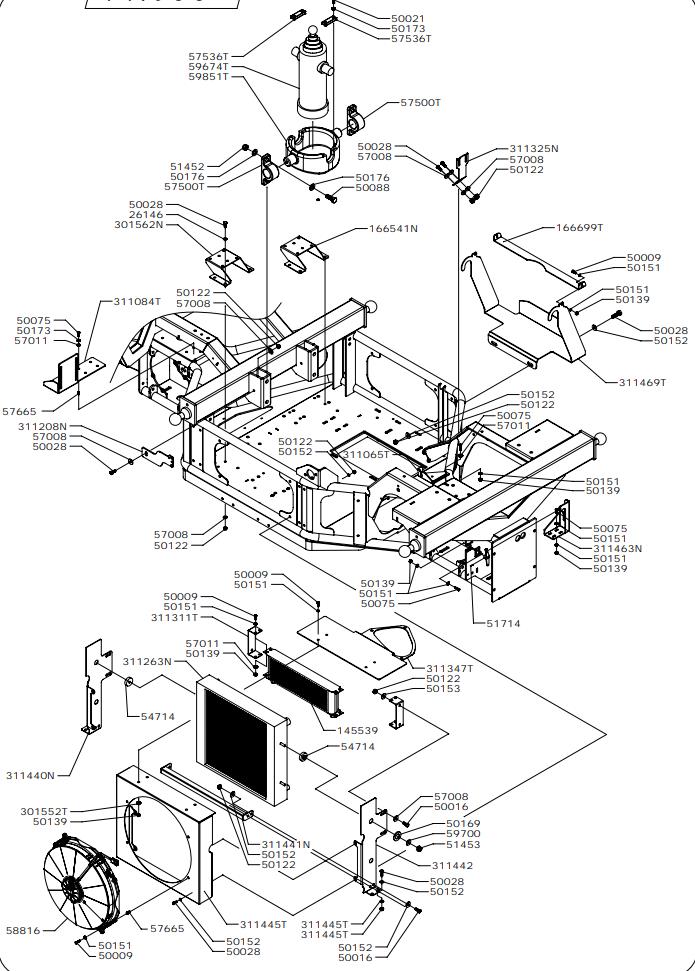

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
145539145539RADIATOR£294.84 Add to
2614626146WASHER£3.64 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5007550075SCREW£1.42 Add to
5008850088SCREW£2.56 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5016950169WASHER£1.66 Add to
5017350173WASHER£1.34 Add to
5017650176WASHER£1.60 Add to
5145251452NUT£2.53 Add to
5145351453NUT£1.36 Add to
5171451714PIN£1.61 Add to
5471454714COLLAR£25.17 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
57500T57500TSUPPORT£38.23 Add to
5766557665THREADED INSERT£2.41 Add to
59674T59674TJACK£1,064.89 Add to
5970059700BELLEVILLE SPRING£1.59 Add to
59851T59851TSUPPORT£199.40 Add to
