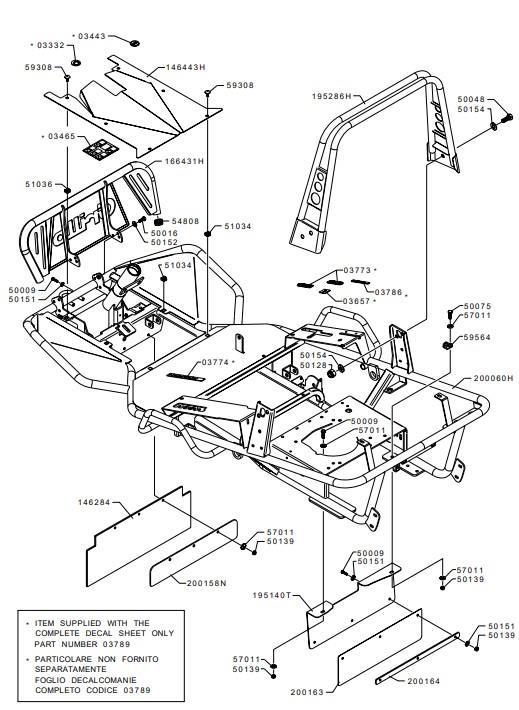

FRAME AND ROLL BAR (from sn 573928 to sn 612703 from 2013 to 2016)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0378903789STICKER£15.79 Add to
146284146284GUARD PLATE£16.00 Add to
146443H146443HFOOTBOARD£56.20 Add to
166431H166431HFOOTBOARD£134.09 Add to
195140T195140TGUARD£28.64 Add to
195286H195286HROLL-BAR£144.57 Add to
200060H200060HFRAME£1,289.72 Add to
200158N200158NBRACKET£21.51 Add to
200163200163GUARD£28.70 Add to
200164200164BRACKET£7.16 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5004850048SCREW£1.90 Add to
5007550075SCREW£1.42 Add to
5012850128NUT£1.58 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5103451034CAGE-NUT£1.58 Add to
5103651036CAGE-NUT£1.52 Add to
5480854808PLUG£1.97 Add to
5701157011WASHER£1.30 Add to
5930859308SCREW£1.92 Add to
5956459564CLAMP£3.36 Add to
