FRAME AND SEAT (from sn 264001 to sn 276400 from 2001 to 2001)

Parts list

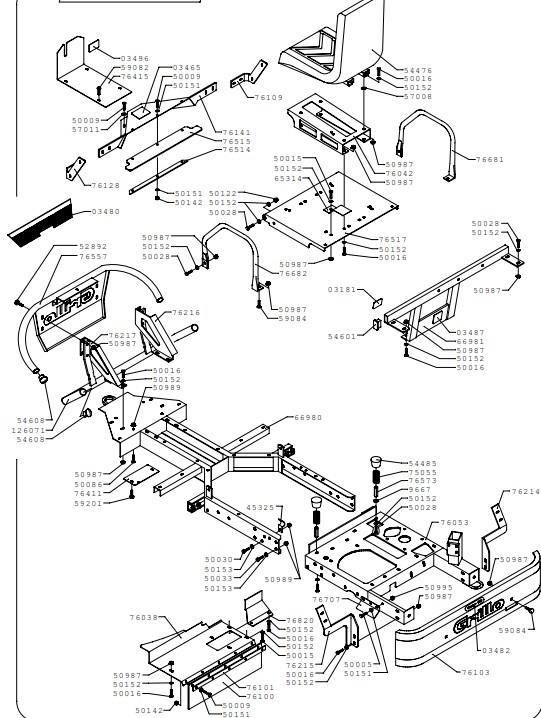

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0318103181STICKER£3.55 Add to
0349603496STICKER£2.95 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5003050030SCREW£1.64 Add to
5003350033SCREW£1.66 Add to
5008650086SCREW£1.86 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5447654476SEAT£196.79 Add to
5448554485PLUG£3.09 Add to
5460154601PLUG£0.78 Add to
5460854608PLUG£2.49 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5908459084SCREW£1.69 Add to
5920159201SCREW£1.39 Add to
5941159411SCREW£1.49 Add to
6531465314FEATHER KEY£5.29 Add to
7505575055SEAT SPRING£9.99 Add to
7610076100GUARD PLATE£30.05 Add to
7610176101BRACKET£12.45 Add to
7657376573EXTENSION£3.28 Add to
7670776707SMALL PLATE£6.54 Add to
96679667WASHER£2.29 Add to
