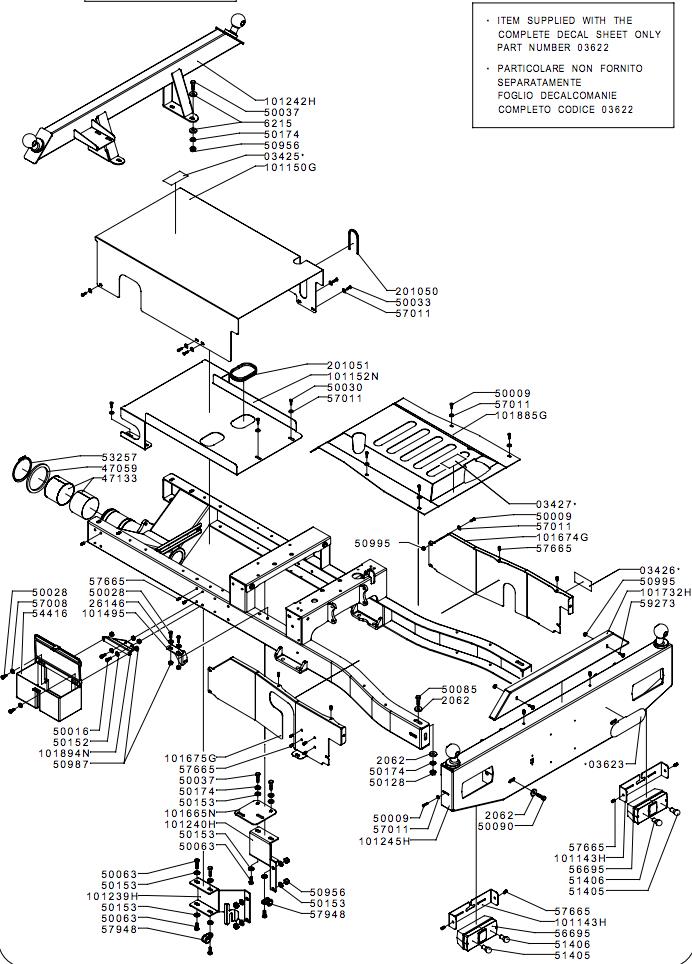

FRAME(from s/n 344001 to s/n 344032 from 2005 to 2006)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0362203622STICKER£51.96 Add to
20622062WASHER£3.77 Add to
2614626146WASHER£3.64 Add to
4705947059RING£25.25 Add to
4713347133BEARING£127.00 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5003050030SCREW£1.64 Add to
5003350033SCREW£1.66 Add to
5003750037SCREW£1.76 Add to
5006350063SCREW£1.61 Add to
5009050090SCREW£2.09 Add to
5012850128NUT£1.58 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5140651406BULB£5.82 Add to
5325753257CIRCLIP£37.18 Add to
5441654416CASE£24.20 Add to
5669556695LIGHT£28.84 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5766557665THREADED INSERT£2.41 Add to
5794857948CLAMP£3.79 Add to
62156215WASHER£4.15 Add to
