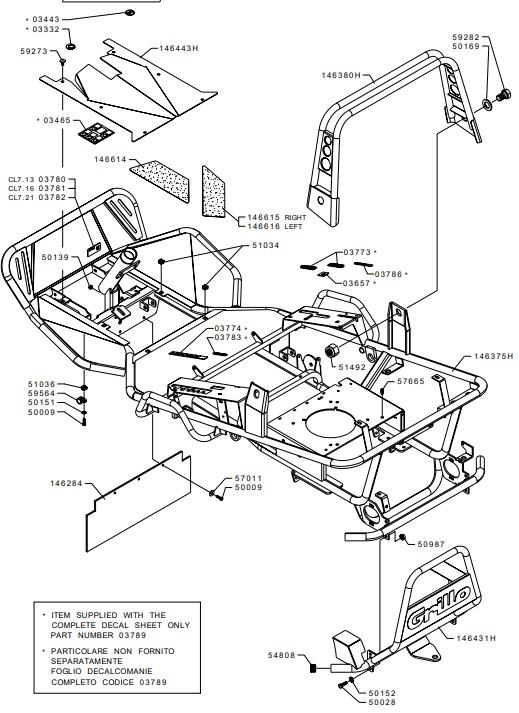

FRAME (from sn 372701 to sn 510646 from 2007 to 2008)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0378903789STICKER£15.79 Add to
146284146284GUARD PLATE£16.00 Add to
146431H146431HBUMPER£157.15 Add to
146443H146443HFOOTBOARD£56.20 Add to
146614146614FOOTBOARD£5.61 Add to
146615146615FOOTBOARD£5.61 Add to
146616146616FOOTBOARD£5.61 Add to
5000950009SCREW£1.42 Add to
5002850028SCREW£1.49 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5016950169WASHER£1.66 Add to
5098750987NUT£2.72 Add to
5103451034CAGE-NUT£1.58 Add to
5103651036CAGE-NUT£1.52 Add to
5149251492NUT£2.33 Add to
5480854808PLUG£1.97 Add to
5701157011WASHER£1.30 Add to
5766557665THREADED INSERT£2.41 Add to
5928259282SCREW£3.47 Add to
5956459564CLAMP£3.36 Add to
