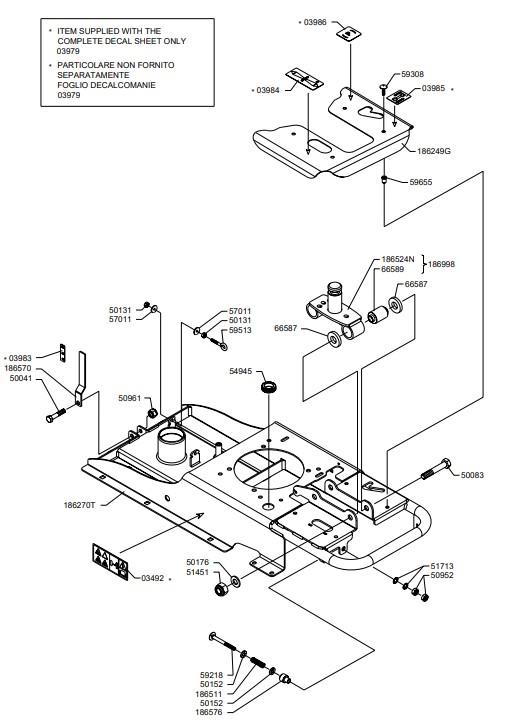

FRAME (from sn 656193 from 2018)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349203492STICKER£2.46 Add to
0397903979STICKER£21.51 Add to
186511186511SPRING£10.75 Add to
186524N186524NSUPPORT£64.49 Add to
186570186570BRACKET£6.80 Add to
186576186576NYLON BUSHING£8.59 Add to
186998186998HANDLEBAR SUPPORT+SILENTBLOCK£107.48 Add to
5004150041SCREW£1.81 Add to
5008350083SCREW£3.43 Add to
5013150131NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5017650176WASHER£1.60 Add to
5095250952NUT£1.36 Add to
5096150961NUT£1.61 Add to
5145151451NUT£2.43 Add to
5171351713RING£0.38 Add to
5494554945CABLE CHOCK£1.81 Add to
5701157011WASHER£1.30 Add to
5921859218SCREW£1.21 Add to
5930859308SCREW£1.92 Add to
5951359513ROD£3.81 Add to
5965559655THREADED INSERT£0.50 Add to
6658766587RUBBER WASHER£5.10 Add to
6658966589SILENTBLOC£14.55 Add to
