FRAME, SEAT AND TANK ( from sn 303001 to sn 521514 from 2003 to 2009)

Parts list

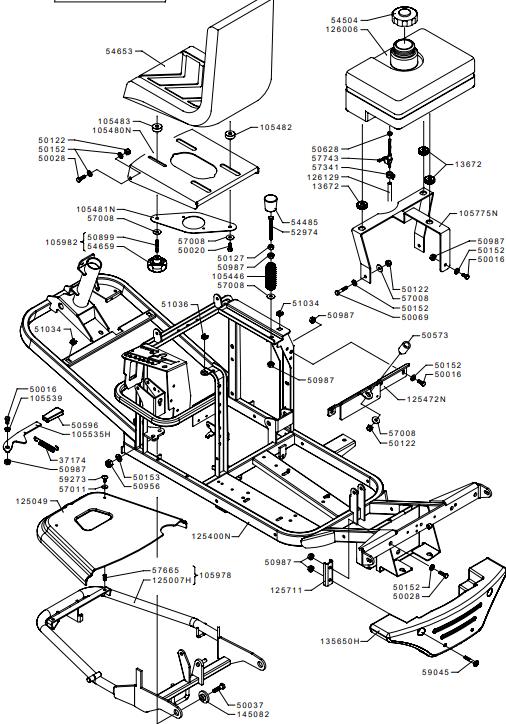

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105446105446SEAT SPRING£6.10 Add to
105480N105480NSUPPORT£47.62 Add to
105482105482BUSHING£3.06 Add to
105483105483SPACER£2.95 Add to
105535H105535HLEVER£30.59 Add to
105539105539BUSHING£8.58 Add to
105982105982KNOB£7.30 Add to
125711125711BRACKET£2.82 Add to
126006126006TANK£133.55 Add to
126129126129PIPE£9.53 Add to
1367213672SHOCK ABSORBER£3.93 Add to
145082145082BUSHING£5.56 Add to
3717437174LEVER SPRING£4.10 Add to
5001650016SCREW£18.80 Add to
5002050020SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5003750037SCREW£1.76 Add to
5006950069SCREW£1.59 Add to
5012250122NUT£1.44 Add to
5012750127NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5057350573RUBBER PAD£6.29 Add to
5062850628GASKET£1.55 Add to
5089950899STUD£2.04 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5103451034CAGE-NUT£1.58 Add to
5103651036CAGE-NUT£1.52 Add to
5297452974SCREW£2.02 Add to
5448554485PLUG£3.09 Add to
5450454504TANK CAP£29.18 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5734157341CLAMP£1.42 Add to
5766557665THREADED INSERT£2.41 Add to
5774357743COCK£11.74 Add to
5904559045SCREW£1.94 Add to
