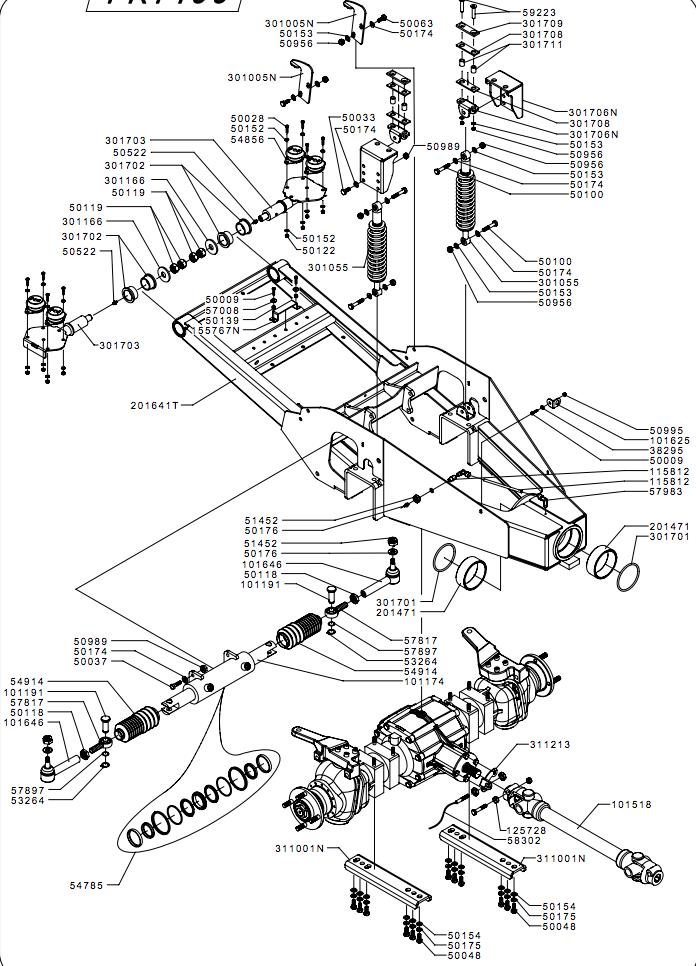

FRONT FRAME(from s/n 564371 to s/n 590106 from 2012 to 2015)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101174101174JACK£1,509.56 Add to
101191101191PIN£19.14 Add to
101518101518PROPELLER SHAFT£360.03 Add to
101646101646ARTICULATION£86.73 Add to
115812115812PIPE£3.53 Add to
125728125728SPACER£6.64 Add to
155767N155767NBRACKET£17.21 Add to
201471201471BUSHING£230.42 Add to
201641T201641TFRAME£2,758.52 Add to
301055301055SHOCK ABSORBER£241.66 Add to
301701301701SPACER£3.30 Add to
301702301702BUSHING£48.41 Add to
3829538295WASHER£3.43 Add to
5000950009SCREW£1.42 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5003750037SCREW£1.76 Add to
5004850048SCREW£1.90 Add to
5006350063SCREW£1.61 Add to
5010050100SCREW£2.04 Add to
5011850118NUT£3.05 Add to
5011950119NUT£2.76 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5017450174WASHER£1.50 Add to
5017550175WASHER£1.42 Add to
5017650176WASHER£1.60 Add to
5052250522FITTING£2.27 Add to
5095650956NUT£1.47 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5145251452NUT£2.53 Add to
5326453264CIRCLIP£1.41 Add to
5478554785RING£67.86 Add to
5485654856SHOCK ABSORBER£56.31 Add to
5491454914RUBBER BELLOW£16.96 Add to
5700857008WASHER£1.35 Add to
5781757817BALL JOINT£40.55 Add to
5789757897SPACER£3.31 Add to
5798357983ADAPTOR 90°£8.61 Add to
5922359223SCREW£2.27 Add to
