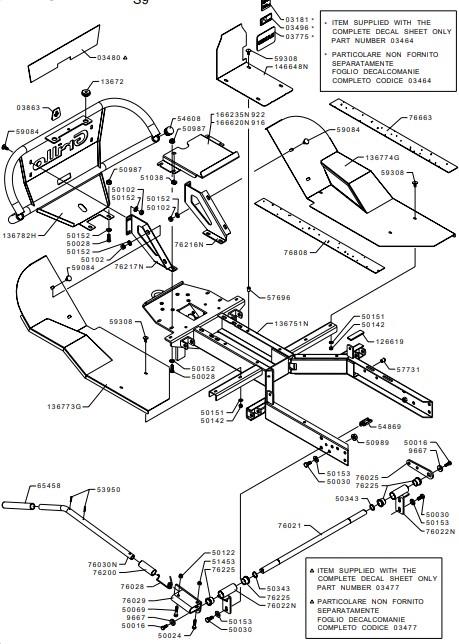

FRONT FRAME (from sn 385501 to sn 580690 from 2007 to 2014)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0318103181STICKER£3.55 Add to
0346403464STICKER£30.77 Add to
0347703477STICKER£56.44 Add to
0349603496STICKER£2.95 Add to
0386303863STICKER£5.99 Add to
1367213672SHOCK ABSORBER£3.93 Add to
136751N136751NFRAME£639.37 Add to
136773G136773GFOOTBOARD£115.37 Add to
136774G136774GFOOTBOARD£115.37 Add to
136782H136782HBUMPER£189.28 Add to
146648N146648NLOCK£26.28 Add to
166620N166620NBATTERY SUPPORT£39.26 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5003050030SCREW£1.64 Add to
5006950069SCREW£1.59 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5034350343CIRCLIP£1.42 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5103851038CAGE-NUT£0.50 Add to
5145351453NUT£1.36 Add to
5395053950PIN£1.99 Add to
5460854608PLUG£2.49 Add to
5486954869FAIRLEAD£0.78 Add to
5769657696THREADED INSERT£1.61 Add to
5773157731THREADED INSERT£1.86 Add to
5908459084SCREW£1.69 Add to
5930859308SCREW£1.92 Add to
6545865458HANDLE£8.52 Add to
7602176021SHAFT£62.91 Add to
76022N76022NSUPPORT£35.71 Add to
7602576025LEVER£8.49 Add to
7602876028LEVER SPRING£6.54 Add to
7602976029SUPPORT£32.61 Add to
76030N76030NLEVER£24.14 Add to
7620076200BUSHING£8.11 Add to
7622576225BUSHING£6.12 Add to
7666376663TAPE£16.58 Add to
7680876808TAPE£16.58 Add to
96679667WASHER£2.29 Add to
