FRONT SCRAPER - SWINGING(from s/n 692483 from 2020)

Parts list

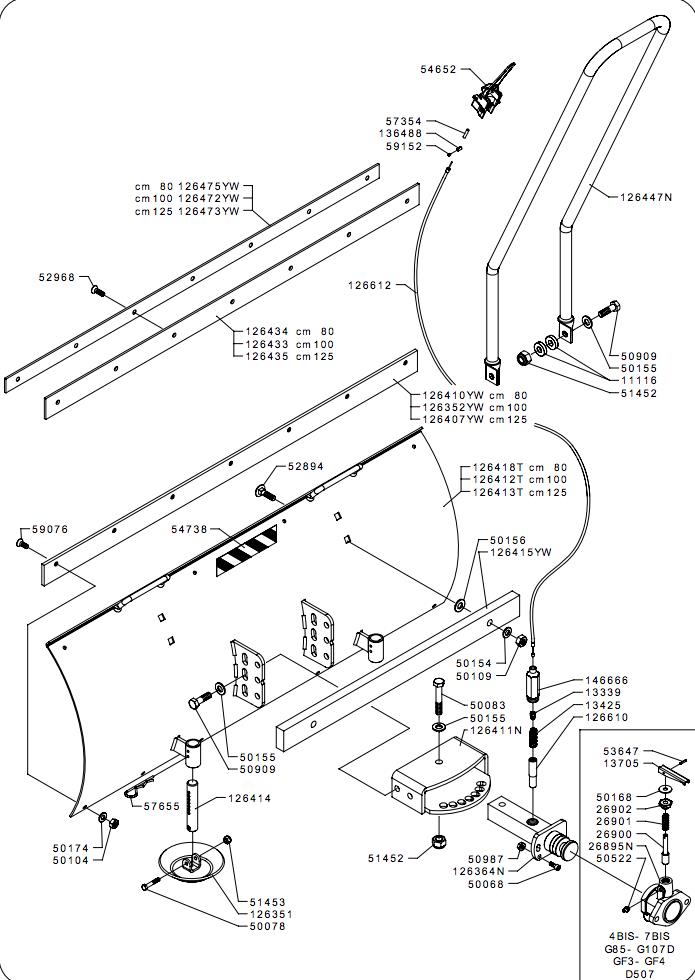

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1111611116WASHER£2.91 Add to
126351126351CAP£26.13 Add to
126364N126364NARM£84.26 Add to
126411N126411NPOSITION SELECTOR£88.39 Add to
126412T126412TSNOW BLADE£334.67 Add to
126413T126413TSNOW BLADE£385.04 Add to
126414126414PIN£22.84 Add to
126418T126418TSNOW BLADE£278.67 Add to
126433126433RUBBER PROTECTION£27.43 Add to
126434126434RUBBER PROTECTION£25.48 Add to
126435126435RUBBER PROTECTION£29.33 Add to
126447N126447NHANDLEBAR£125.70 Add to
126610126610PIN£14.31 Add to
126612126612WIRE£7.66 Add to
1333913339PIN£2.87 Add to
1342513425SPRING£4.47 Add to
136488136488CLAMP£3.75 Add to
1370513705LEVER£7.55 Add to
146666146666BUSHING£21.17 Add to
26895N26895NSLEEVE£132.30 Add to
2690026900PIN£22.62 Add to
2690126901SPRING£4.42 Add to
2690226902SCREW£7.40 Add to
5006850068SCREW£1.52 Add to
5007850078SCREW£1.69 Add to
5008350083SCREW£3.43 Add to
5010450104NUT£1.44 Add to
5010950109NUT£1.52 Add to
5015450154WASHER£1.37 Add to
5015550155WASHER£1.42 Add to
5015650156WASHER£1.44 Add to
5016850168WASHER£1.45 Add to
5017450174WASHER£1.50 Add to
5052250522FITTING£2.27 Add to
5090950909SCREW£2.58 Add to
5098750987NUT£2.72 Add to
5145251452NUT£2.53 Add to
5145351453NUT£1.36 Add to
5289452894SCREW£2.94 Add to
5296852968SCREW£2.27 Add to
5364753647SPRING PIN£1.34 Add to
5465254652LEVER£19.27 Add to
5735457354BOOT£1.60 Add to
5765557655SPLIT PIN£2.48 Add to
5907659076SCREW£1.81 Add to
5915259152ALLEN SCREW£1.42 Add to
