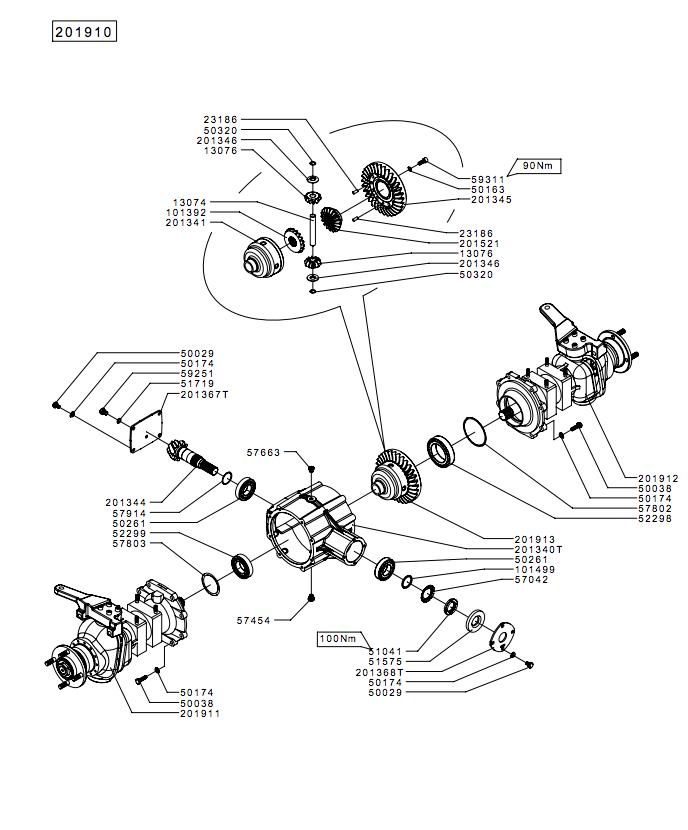

FRONT WHEEL AXLE(1)(from s/n 536678 from 2010)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101392101392SUN GEAR£93.79 Add to
101499101499SPACER£10.75 Add to
1307413074PIN£19.74 Add to
1307613076IDLE PINION£56.23 Add to
201341201341DIFFERENTIAL BOX£274.33 Add to
201344201344PINION£414.48 Add to
201345201345RING GEAR£433.25 Add to
201346201346WASHER£23.81 Add to
2318623186PIN£4.95 Add to
5002950029SCREW£1.61 Add to
5003850038SCREW£1.76 Add to
5016350163WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5026150261BEARING£64.12 Add to
5032050320CIRCLIP£1.45 Add to
5157551575SEAL RING£6.29 Add to
5171951719WASHER£1.59 Add to
5229852298BEARING£99.86 Add to
5229952299BEARING£54.82 Add to
5704257042WASHER, FLAT£2.61 Add to
5766357663BREATHER CAP£11.00 Add to
5780257802SPACER£3.68 Add to
5780357803SPACER£8.49 Add to
5791457914SPACER£3.49 Add to
5925159251SCREW£1.71 Add to
