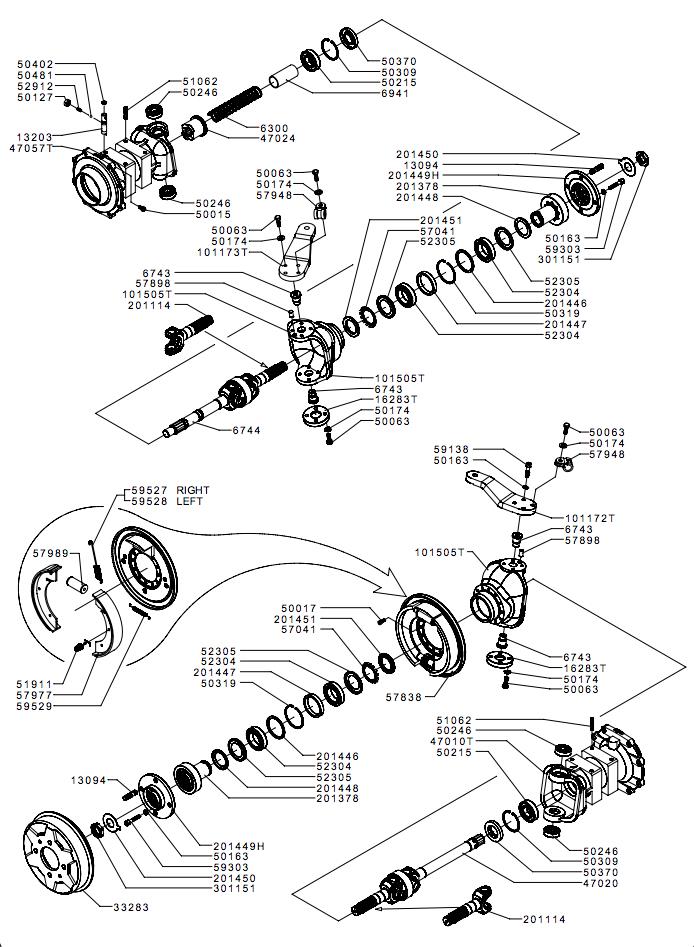

FRONT WHEEL AXLE(from s/n 344001 from 2005)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101172T101172TCONNECTING ROD£80.17 Add to
101173T101173TCONNECTING ROD£73.34 Add to
101505T101505TCAP£402.97 Add to
1309413094STUD£4.07 Add to
1320313203PLUNGER£24.90 Add to
16283T16283TFLANGE£58.77 Add to
201114201114CONNECTOR£335.68 Add to
201446201446SPACER£7.01 Add to
201447201447SPACER£17.20 Add to
201448201448SPACER£17.51 Add to
201451201451RING NUT£22.77 Add to
47010T47010TWHEELS AXLE CASE£632.67 Add to
4702047020AXLE-SHAFT£1,029.03 Add to
4702447024COUPLING£84.45 Add to
47057T47057TWHEELS AXLE CASE£632.67 Add to
5001550015SCREW£1.44 Add to
5001750017SCREW£1.44 Add to
5006350063SCREW£1.61 Add to
5012750127NUT£1.36 Add to
5016350163WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5021550215BEARING£31.79 Add to
5030950309CIRCLIP£2.97 Add to
5031950319CIRCLIP£3.23 Add to
5037050370SEAL RING£12.18 Add to
5040250402O-RING£1.52 Add to
5048150481BALL£1.71 Add to
5106251062SHAFT, INPUT£255.66 Add to
5191151911SPRING£17.21 Add to
5230452304BEARING£47.69 Add to
5230552305RING£12.86 Add to
5243852438BEARING£16.15 Add to
5291252912ALLEN SCREW£2.12 Add to
5704157041WASHER, FLAT£3.07 Add to
5783857838BRAKE SYSTEM ELEMENT£451.58 Add to
5789857898PIN£4.81 Add to
5794857948CLAMP£3.79 Add to
5797757977BRAKE CALIPER£60.64 Add to
5798957989CYLINDER£77.11 Add to
5913859138SCREW£1.73 Add to
5952759527SPRING£26.35 Add to
5952859528SPRING£26.35 Add to
5952959529SPRING£17.21 Add to
63006300SPRING£11.73 Add to
67436743PIN£30.05 Add to
67446744AXLE-SHAFT£1,029.03 Add to
