FRONT WHEEL AXLE(from s/n 564371 from 2012)

Parts list

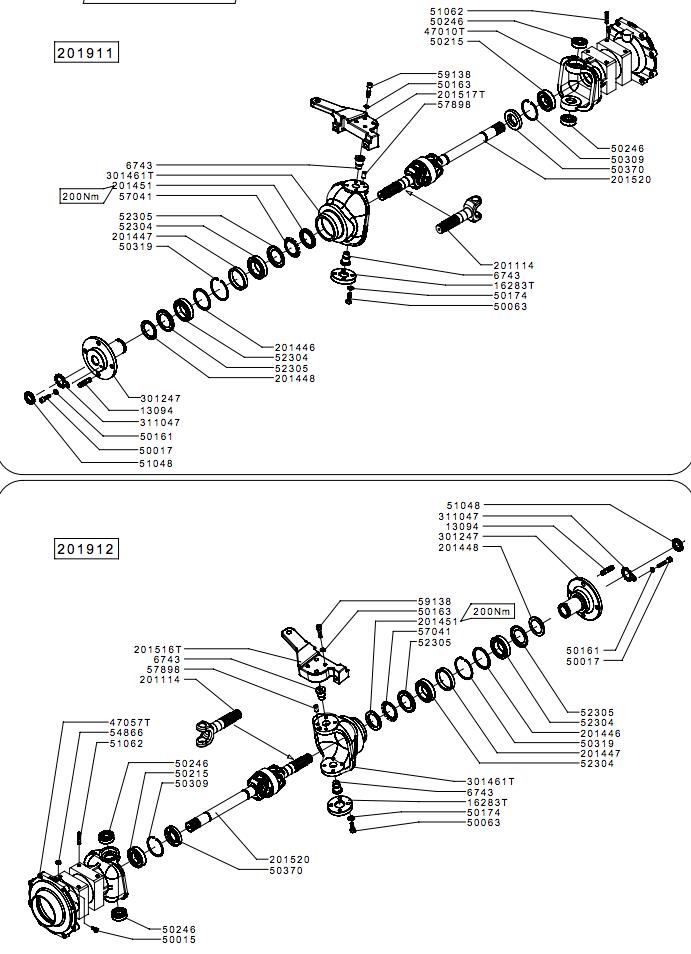

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1309413094STUD£4.07 Add to
16283T16283TFLANGE£58.77 Add to
201114201114CONNECTOR£335.68 Add to
201446201446SPACER£7.01 Add to
201447201447SPACER£17.20 Add to
201448201448SPACER£17.51 Add to
201451201451RING NUT£22.77 Add to
201516T201516TCONNECTING ROD£189.11 Add to
201517T201517TCONNECTING ROD£189.11 Add to
201520201520AXLE-SHAFT£790.13 Add to
301247301247FRONT WHEEL HUB£306.04 Add to
301461T301461TCONNECTING ROD£402.09 Add to
311047311047WASHER£2.97 Add to
47010T47010TWHEELS AXLE CASE£632.67 Add to
47057T47057TWHEELS AXLE CASE£632.67 Add to
5001550015SCREW£1.44 Add to
5001750017SCREW£1.44 Add to
5006350063SCREW£1.61 Add to
5016150161WASHER£1.66 Add to
5016350163WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5021550215BEARING£31.79 Add to
5030950309CIRCLIP£2.97 Add to
5031950319CIRCLIP£3.23 Add to
5037050370SEAL RING£12.18 Add to
5104851048SWASHPLATE, TRUNNION MACHINED£188.08 Add to
5106251062SHAFT, INPUT£255.66 Add to
5230452304BEARING£47.69 Add to
5230552305RING£12.86 Add to
5243852438BEARING£16.15 Add to
5704157041WASHER, FLAT£3.07 Add to
5789857898PIN£4.81 Add to
5913859138SCREW£1.73 Add to
67436743PIN£30.05 Add to
