FRONT WHEEL AXLE(from s/n 598456 from 2015)

Parts list

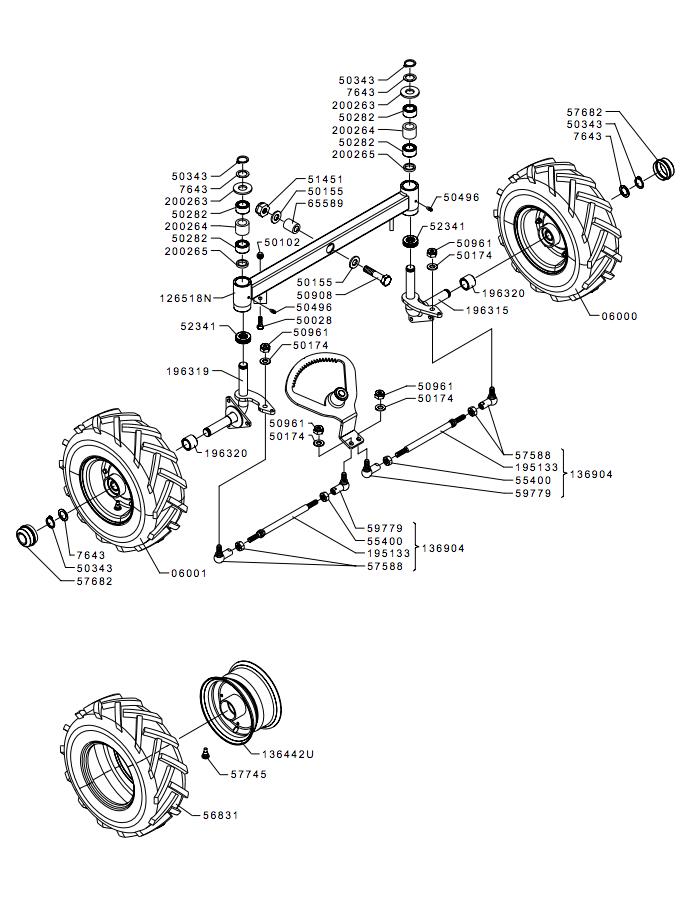

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0600006000FRONT RUBBER WHEEL RIGHT£138.18 Add to
0600106001FRONT RUBBER WHEEL LEFT£138.18 Add to
126518N126518NAXLE£105.20 Add to
136442U136442URIM£66.59 Add to
136904136904ROD£41.59 Add to
195133195133ROD£14.69 Add to
196315196315RIGHT SPINDLE£48.77 Add to
196319196319LEFT SPINDLE£48.77 Add to
196320196320SPACER£5.67 Add to
200263200263WASHER£3.39 Add to
200264200264SPACER£5.88 Add to
200265200265SPACER£3.48 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5015550155WASHER£1.42 Add to
5017450174WASHER£1.50 Add to
5028250282ROLLER BEARING£18.35 Add to
5034350343CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5090850908SCREW£3.25 Add to
5096150961NUT£1.61 Add to
5145151451NUT£2.43 Add to
5234152341BEARING£3.64 Add to
5540055400NUT£4.56 Add to
5683156831TYRE CL9 FRONT£62.16 Add to
5758857588ARTICULATION£11.18 Add to
5768257682COVER£6.40 Add to
5774557745VALVE£3.73 Add to
5977959779ARTICULATION£11.18 Add to
6558965589SPACER£6.25 Add to
76437643SPACER£2.71 Add to
