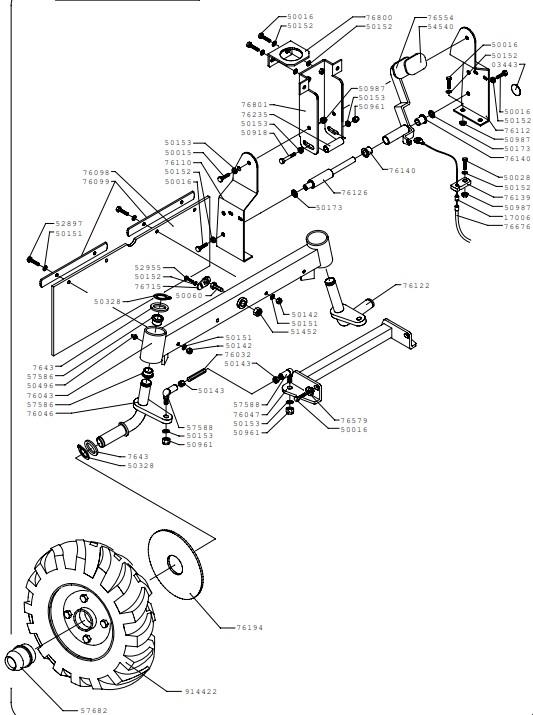

FRONT WHEEL AXLE (from sn 264001 to sn 276400 from 2001 to 2001)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1700617006BUSHING£51.96 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5006050060SCREW£3.52 Add to
5014250142NUT£1.32 Add to
5014350143NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5032850328CIRCLIP£1.44 Add to
5049650496FITTING£1.90 Add to
5091850918SCREW£2.58 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5145251452NUT£2.53 Add to
5289752897SCREW£1.37 Add to
5295552955SCREW£1.59 Add to
5454054540DUST CAP£6.79 Add to
5758657586BUSHING£4.01 Add to
5758857588ARTICULATION£11.18 Add to
5768257682COVER£6.40 Add to
7603276032ROD£6.65 Add to
7604676046SPINDLE£48.02 Add to
7609976099BRACKET£6.00 Add to
7612276122SPINDLE£48.02 Add to
7612676126PIN£26.22 Add to
7613976139SMALL PLATE£2.46 Add to
7614076140NYLON BUSHING£6.83 Add to
7619476194GUARD£14.96 Add to
76437643SPACER£2.71 Add to
7657976579BUSHING£4.57 Add to
7667676676BRAKES CABLE£5.75 Add to
7671576715SMALL PLATE£3.92 Add to
