FRONT WHEEL AXLE (from sn 276401 from 2001)

Parts list

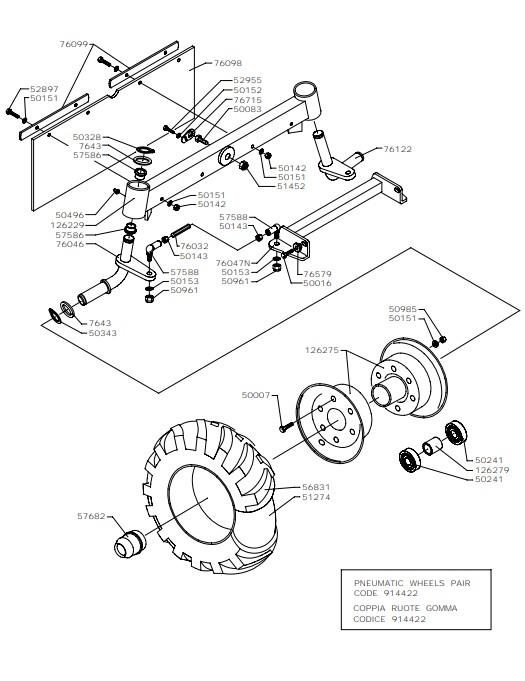

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126279126279SPACER£3.24 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5008350083SCREW£3.43 Add to
5014250142NUT£1.32 Add to
5014350143NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5032850328CIRCLIP£1.44 Add to
5034350343CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5098550985NUT£1.30 Add to
5127451274INNERTUBE£17.21 Add to
5145251452NUT£2.53 Add to
5244952449BEARING£11.58 Add to
5289752897SCREW£1.37 Add to
5295552955SCREW£1.59 Add to
5683156831TYRE CL9 FRONT£62.16 Add to
5758657586BUSHING£4.01 Add to
5758857588ARTICULATION£11.18 Add to
5768257682COVER£6.40 Add to
7603276032ROD£6.65 Add to
7604676046SPINDLE£48.02 Add to
76047N76047NDRAG LINK£57.95 Add to
7609976099BRACKET£6.00 Add to
7612276122SPINDLE£48.02 Add to
76437643SPACER£2.71 Add to
7657976579BUSHING£4.57 Add to
7671576715SMALL PLATE£3.92 Add to
