FRONT WHEEL AXLE (from sn 573928 to sn 598743 from 2013 to 2015)

Parts list

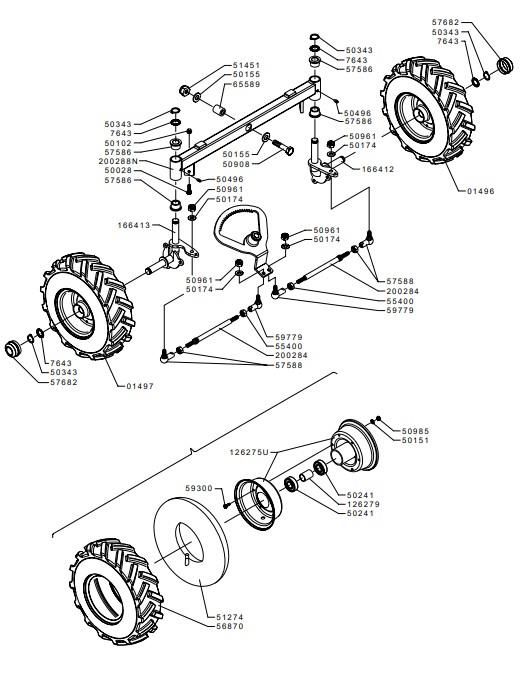

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0149601496RUBBER WHEEL£158.72 Add to
0149701497RUBBER WHEEL£158.72 Add to
126275U126275URIM£65.99 Add to
126279126279SPACER£3.24 Add to
166412166412RIGHT SPINDLE£59.60 Add to
166413166413LEFT SPINDLE£59.60 Add to
200284200284ROD£15.83 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5015150151WASHER£1.28 Add to
5015550155WASHER£1.42 Add to
5017450174WASHER£1.50 Add to
5034350343CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5090850908SCREW£3.25 Add to
5096150961NUT£1.61 Add to
5098550985NUT£1.30 Add to
5127451274INNERTUBE£17.21 Add to
5145151451NUT£2.43 Add to
5540055400NUT£4.56 Add to
5758657586BUSHING£4.01 Add to
5758857588ARTICULATION£11.18 Add to
5768257682COVER£6.40 Add to
5930059300SCREW£1.49 Add to
5977959779ARTICULATION£11.18 Add to
6558965589SPACER£6.25 Add to
76437643SPACER£2.71 Add to
