FRONT WHEEL AXLE (from sn 586945 to sn 600585 from 2014 to 2015)

Parts list

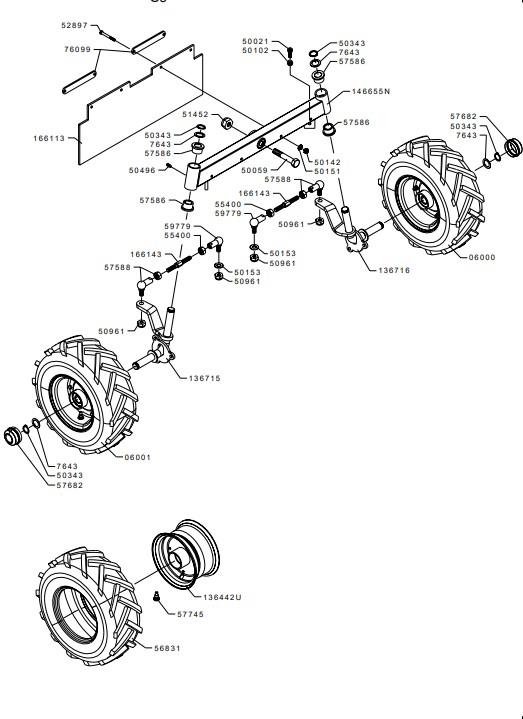

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0600006000FRONT RUBBER WHEEL RIGHT£138.18 Add to
0600106001FRONT RUBBER WHEEL LEFT£138.18 Add to
136442U136442URIM£66.59 Add to
136715136715SPINDLE£50.09 Add to
136716136716SPINDLE£50.09 Add to
146655N146655NAXLE£158.94 Add to
166113166113GUARD£36.14 Add to
166143166143ROD£8.09 Add to
5002150021SCREW£1.46 Add to
5005950059SCREW£3.23 Add to
5010250102NUT£1.36 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015350153WASHER£1.34 Add to
5034350343CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5145251452NUT£2.53 Add to
5289752897SCREW£1.37 Add to
5540055400NUT£4.56 Add to
5683156831TYRE CL9 FRONT£62.16 Add to
5758657586BUSHING£4.01 Add to
5758857588ARTICULATION£11.18 Add to
5768257682COVER£6.40 Add to
5774557745VALVE£3.73 Add to
5977959779ARTICULATION£11.18 Add to
76437643SPACER£2.71 Add to
