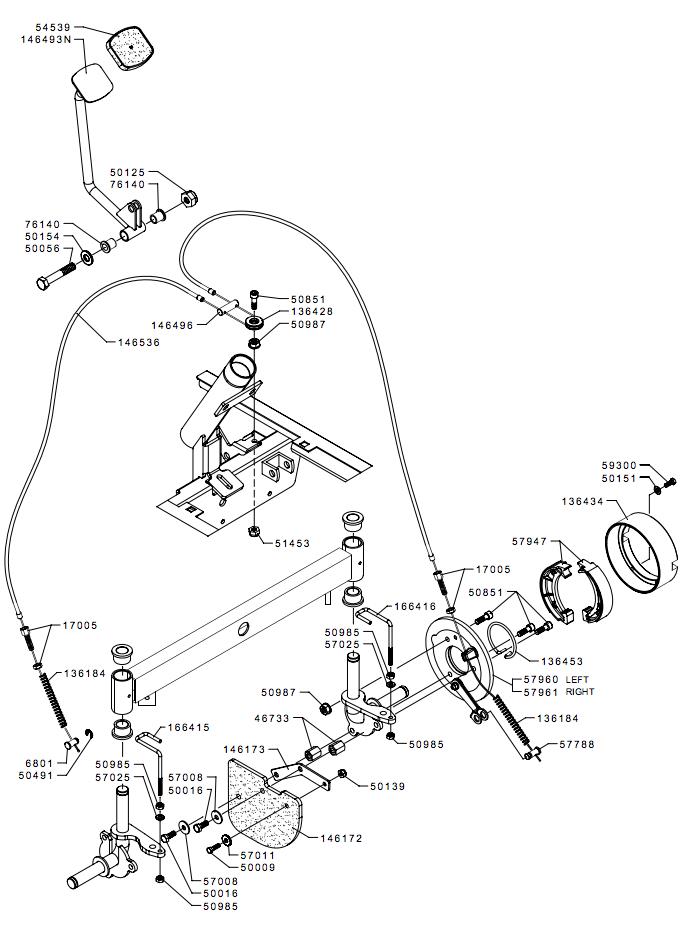

FRONT WHEEL BRAKE(from s/n 571989 to s/n 588523 from 2013 to 2014)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136184136184SPRING£4.47 Add to
136428136428PULLEY£8.59 Add to
136434136434BRAKE DRUM£59.82 Add to
136453136453SPRING£5.25 Add to
146172146172GUARD PLATE£17.06 Add to
146173146173BRACKET£4.66 Add to
146493N146493NPEDAL£48.50 Add to
146496146496PIN£11.29 Add to
146536146536WIRE£13.89 Add to
1700517005ADJUSTER£5.27 Add to
200279200279CABLE GUIDE ROD LEFT£10.23 Add to
4673346733EXTENSION£4.03 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5005650056SCREW£2.51 Add to
5012550125NUT£1.58 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015450154WASHER£1.37 Add to
5049150491RING SNAP£1.44 Add to
5085150851SCREW£1.58 Add to
5098550985NUT£1.30 Add to
5098750987NUT£2.72 Add to
5145351453NUT£1.36 Add to
5453954539DUST CAP£14.01 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5702557025WASHER£1.34 Add to
5778857788CLAMP£3.39 Add to
5794757947BRAKE£18.37 Add to
5796057960BRAKES GROUP BLOCKHOLDER£115.92 Add to
5796157961BRAKES GROUP BLOCKHOLDER£115.92 Add to
5930059300SCREW£1.49 Add to
68016801CONNECTION£9.59 Add to
7614076140NYLON BUSHING£6.83 Add to
