FRONT WHEEL BRAKE (from sn 598744 to sn 670354 from 2015 to 2019)

Parts list

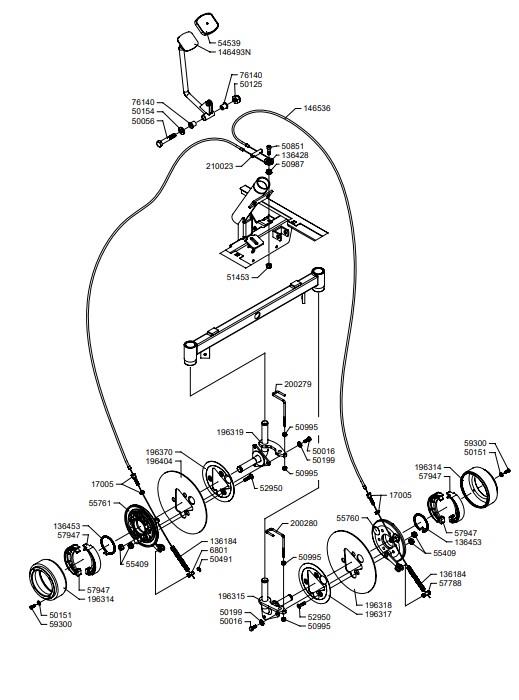

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136184136184SPRING£4.47 Add to
136428136428PULLEY£8.59 Add to
136453136453SPRING£5.25 Add to
146493N146493NPEDAL£48.50 Add to
146536146536WIRE£13.89 Add to
1700517005ADJUSTER£5.27 Add to
196315196315RIGHT SPINDLE£48.77 Add to
196317196317GUARD£12.70 Add to
196318196318HUB GUM PROTECTION£23.42 Add to
196319196319LEFT SPINDLE£48.77 Add to
196370196370GUARD£12.70 Add to
196404196404HUB GUM PROTECTION£23.42 Add to
200279200279CABLE GUIDE ROD LEFT£10.23 Add to
200280200280CABLE GUIDE ROD RIGHT£10.23 Add to
210023210023PIN£6.39 Add to
5001650016SCREW£18.80 Add to
5005650056SCREW£2.51 Add to
5012550125NUT£1.58 Add to
5015150151WASHER£1.28 Add to
5015450154WASHER£1.37 Add to
5019950199WASHER£1.58 Add to
5049150491RING SNAP£1.44 Add to
5085150851SCREW£1.58 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5295052950SCREW£1.76 Add to
5453954539DUST CAP£14.01 Add to
5540955409NUT£1.58 Add to
5576055760BRAKES GROUP BLOCKHOLDER£101.29 Add to
5576155761BRAKES GROUP BLOCKHOLDER£101.29 Add to
5778857788CLAMP£3.39 Add to
5794757947BRAKE£18.37 Add to
5930059300SCREW£1.49 Add to
68016801CONNECTION£9.59 Add to
7614076140NYLON BUSHING£6.83 Add to
