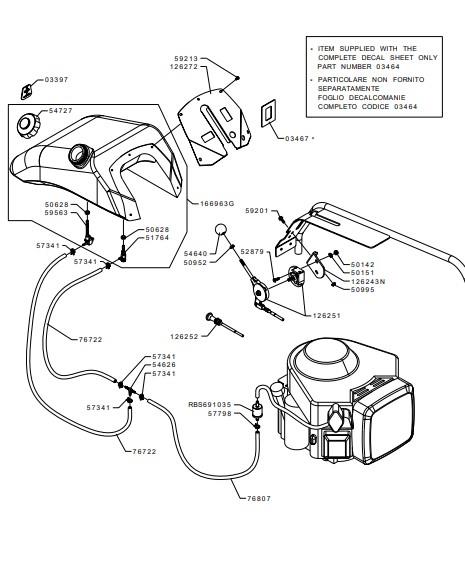

FUEL TANK AND THROTTLE (from sn 363301 to sn 520384 from 2006 to 2009)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0339703397STICKER£6.30 Add to
0346403464STICKER£30.77 Add to
126243N126243NBRACKET£6.48 Add to
126251126251ACCELERATOR CONTROL LEVER£57.49 Add to
126252126252STARTER CONTROL LEVER£40.82 Add to
195972195972TANK£283.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5062850628GASKET£1.55 Add to
5095250952NUT£1.36 Add to
5099550995NUT£1.32 Add to
5176451764TAP£10.81 Add to
5287952879SCREW£1.39 Add to
5462654626CONNECTION£3.23 Add to
5464054640BALL£6.17 Add to
5472754727PLUG£27.92 Add to
5734157341CLAMP£1.42 Add to
5779857798CLAMP£1.49 Add to
5920159201SCREW£1.39 Add to
5921359213SCREW£1.42 Add to
5956359563TAP£14.77 Add to
7672276722PIPE£9.20 Add to
7680776807PIPE£15.30 Add to
RBS691035RBS691035FILTERING ELEMENT£21.77 Add to
