GEAR BOX(1)(from s/n 564371 from 2012)

Parts list

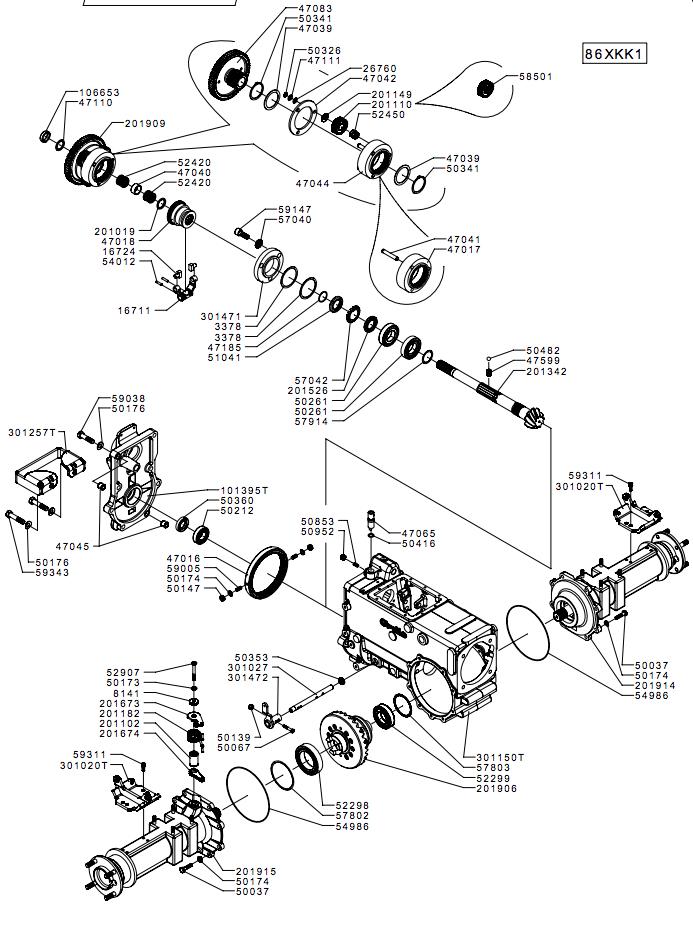

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101395T101395TCOVER£500.77 Add to
106653106653SPACER£21.89 Add to
1671116711YOKE£83.41 Add to
1672416724SKID PLATE£6.60 Add to
201019201019WASHER£5.78 Add to
201110201110IDLE PINION£75.22 Add to
201149201149WASHER£32.75 Add to
201182201182SPRING£35.07 Add to
201342201342PINION£1,254.56 Add to
201526201526RING NUT£20.02 Add to
2676026760SPACER£2.87 Add to
301027301027PIN£33.50 Add to
301150T301150TGEARBOX£1,395.95 Add to
301471301471FLANGE£96.82 Add to
301472301472LEVER£45.10 Add to
33783378SPACER£6.49 Add to
4701647016RING£186.61 Add to
4701847018COUPLING£164.43 Add to
4703947039RING£7.85 Add to
4704047040SPACER£10.38 Add to
4704147041PIN£9.40 Add to
4704247042RING£25.86 Add to
4704447044IDLE PINION£390.46 Add to
4704547045BUSHING£14.57 Add to
4706547065PLUNGER£50.00 Add to
4711047110SPACER£22.06 Add to
4711147111SPACER£3.88 Add to
4718547185RING£5.47 Add to
4759947599SPRING£9.22 Add to
5003750037SCREW£1.76 Add to
5006750067SCREW£1.45 Add to
5013950139NUT£1.34 Add to
5014750147NUT£1.44 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017650176WASHER£1.60 Add to
5026150261BEARING£64.12 Add to
5032650326CIRCLIP£1.37 Add to
5034150341CIRCLIP£2.97 Add to
5035350353SEAL RING£4.07 Add to
5036050360SEAL RING£5.20 Add to
5041650416O-RING£1.64 Add to
5048250482BALL£1.95 Add to
5085350853ALLEN SCREW£1.97 Add to
5095250952NUT£1.36 Add to
5229852298BEARING£99.86 Add to
5229952299BEARING£54.82 Add to
5242052420BEARING£22.20 Add to
5244852448BEARING£15.26 Add to
5245052450BEARING£40.67 Add to
5290752907SCREW£1.76 Add to
5401254012PIN£1.71 Add to
5498654986O-RING£3.81 Add to
5704057040WASHER£1.68 Add to
5704257042WASHER, FLAT£2.61 Add to
5780257802SPACER£3.68 Add to
5780357803SPACER£8.49 Add to
5791457914SPACER£3.49 Add to
5850158501BAG£146.42 Add to
5900559005ALLEN SCREW£2.36 Add to
5914759147SCREW£2.73 Add to
81418141WASHER£3.84 Add to
