GEAR BOX 1(from sn 190643 from sn 190644 from 1995)

Parts list

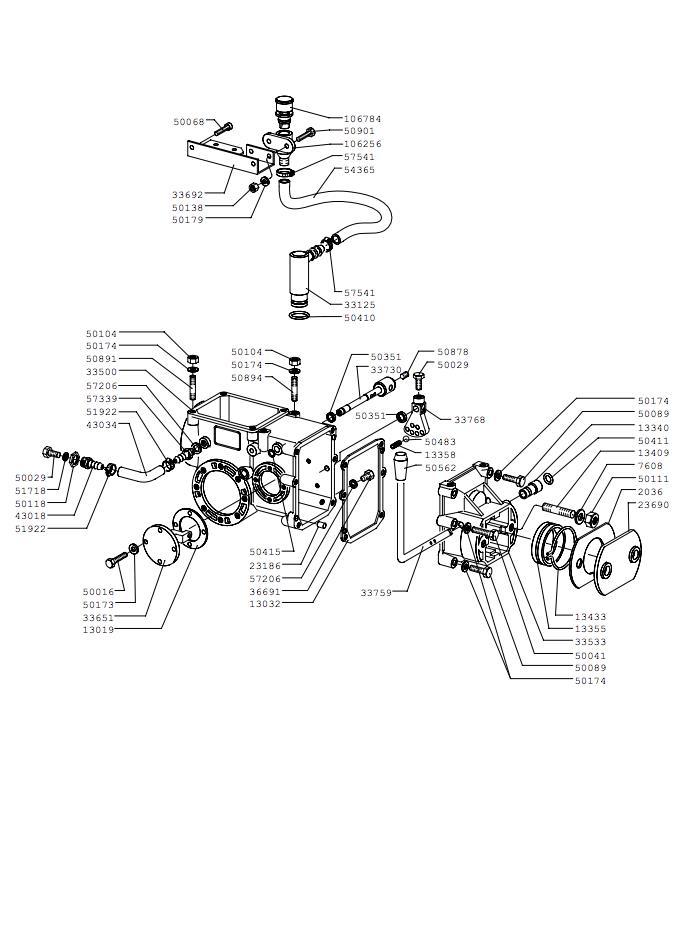

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1301913019GASKET£2.38 Add to
1303213032GASKET,COVER£3.43 Add to
1334013340BUSHING£5.68 Add to
1335513355BUSHING£30.67 Add to
1335813358SPRING£6.92 Add to
1340913409STUD£6.60 Add to
1343313433RING£4.61 Add to
20362036GASKET£3.43 Add to
2318623186PIN£4.95 Add to
3373033730PIN£56.23 Add to
3375933759PTO CONTROL LEVER£19.45 Add to
3376833768BUSHING£31.17 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
5001650016SCREW£18.80 Add to
5002950029SCREW£1.61 Add to
5004150041SCREW£1.81 Add to
5006850068SCREW£1.52 Add to
5008950089SCREW£1.85 Add to
5010450104NUT£1.44 Add to
5011150111NUT£1.90 Add to
5013850138NUT£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017950179WASHER£1.30 Add to
5035150351SEAL RING£3.28 Add to
5041050410O-RING£2.09 Add to
5041150411O-RING£1.36 Add to
5041550415O-RING£1.49 Add to
5048350483BALL£2.02 Add to
5056250562KNOB£3.43 Add to
5089150891STUD£3.20 Add to
5089450894STUD£3.23 Add to
5090150901SCREW£1.42 Add to
5171851718WASHER£2.43 Add to
5192251922CLAMP£2.99 Add to
5720657206WASHER£1.44 Add to
5754157541CLAMP£2.63 Add to
76087608WASHER£4.93 Add to
