GEAR BOX (2nd version) (from sn 276401 to sn 345232 from 2001 to 2005)

Parts list

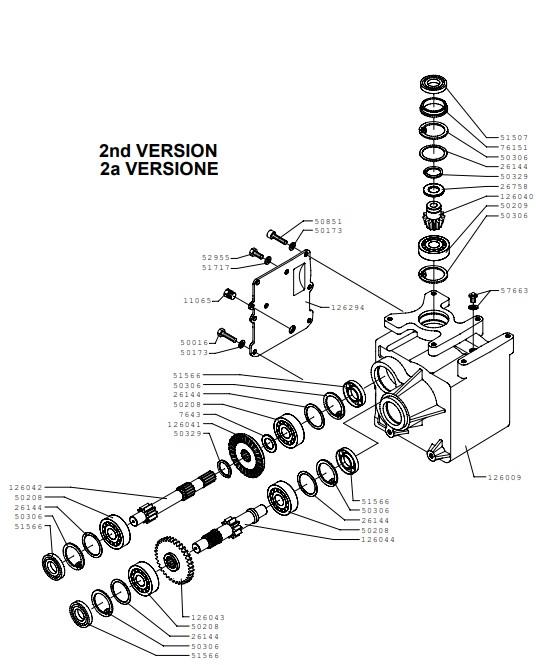

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1106511065MALE HEXAGONAL PLUG£5.09 Add to
126009126009GEARBOX£537.00 Add to
126040126040PINION£53.94 Add to
126041126041RING GEAR£72.74 Add to
126044126044SHAFT£74.60 Add to
126294126294COVER£40.81 Add to
2614426144SPACER£3.41 Add to
2675826758SPACER£3.19 Add to
5001650016SCREW£18.80 Add to
5017350173WASHER£1.34 Add to
5020950209BEARING£15.55 Add to
5030650306CIRCLIP£2.31 Add to
5032950329CIRCLIP£1.68 Add to
5085150851SCREW£1.58 Add to
5150751507SEAL RING£4.94 Add to
5156651566SEAL RING£4.56 Add to
5171751717WASHER£2.43 Add to
5242952429BEARING£16.07 Add to
5295552955SCREW£1.59 Add to
5766357663BREATHER CAP£11.00 Add to
7615176151BUSHING£18.12 Add to
76437643SPACER£2.71 Add to
