GEAR BOX & ENGINE FOCS 1404(from s/n 564371 from 2012)

Parts list

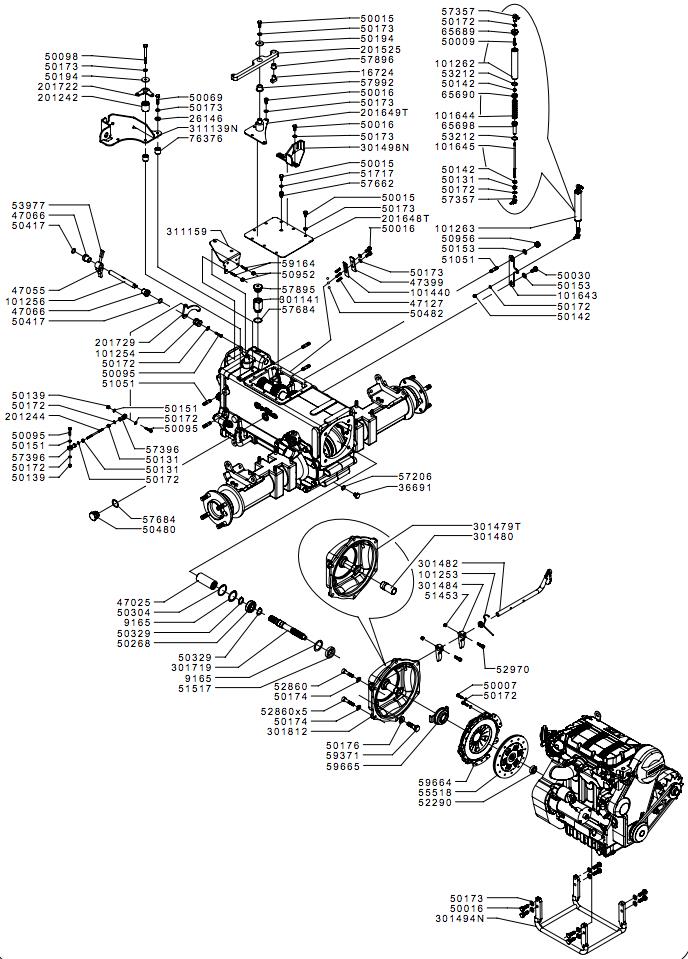

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101253101253LEVER SPRING£13.00 Add to
101254101254BUSHING£14.06 Add to
101256101256ROD£56.99 Add to
101263101263SHOCKABSORBER£72.07 Add to
101440101440SPACER£3.25 Add to
1672416724SKID PLATE£6.60 Add to
201244201244ROD£11.05 Add to
201649T201649TSUPPORT£75.30 Add to
2614626146WASHER£3.64 Add to
301719301719SHAFT£417.29 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
4705547055LEVER£46.62 Add to
4706647066BUSHING£27.88 Add to
4712747127SPRING£25.53 Add to
5000750007SCREW£1.50 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5003050030SCREW£1.64 Add to
5006950069SCREW£1.59 Add to
5009550095SCREW£1.42 Add to
5009850098SCREW£1.97 Add to
5013150131NUT£1.32 Add to
5013950139NUT£1.34 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015350153WASHER£1.34 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017650176WASHER£1.60 Add to
5019450194WASHER£1.60 Add to
5026850268BEARING£12.73 Add to
5030450304CIRCLIP£2.09 Add to
5032950329CIRCLIP£1.68 Add to
5041750417O-RING£1.59 Add to
5048250482BALL£1.95 Add to
5095250952NUT£1.36 Add to
5095650956NUT£1.47 Add to
5105151051STUD£3.02 Add to
5145351453NUT£1.36 Add to
5151751517SEAL RING£5.41 Add to
5171751717WASHER£2.43 Add to
5229052290BEARING£11.13 Add to
5286052860SCREW£2.08 Add to
5297052970SCREW£1.95 Add to
5321253212CIRCLIP£1.49 Add to
5397753977PIN£1.79 Add to
5551855518CLUTCH PLATE£155.30 Add to
5720657206WASHER£1.44 Add to
5735757357ARTICULATION£10.46 Add to
5739657396JOINT HEAD£31.44 Add to
5766257662THREADED INSERT£1.89 Add to
5768457684WASHER£2.36 Add to
5789557895BREATHER CAP£20.45 Add to
5789657896BUSHING£4.15 Add to
5799257992BUSHING£4.56 Add to
5966459664CLUTCH£194.71 Add to
5966559665BEARING£46.33 Add to
6568965689PLUG£5.18 Add to
6569065690BUSHING£11.11 Add to
7637676376SPACER£6.46 Add to
91659165SPACER£3.41 Add to
