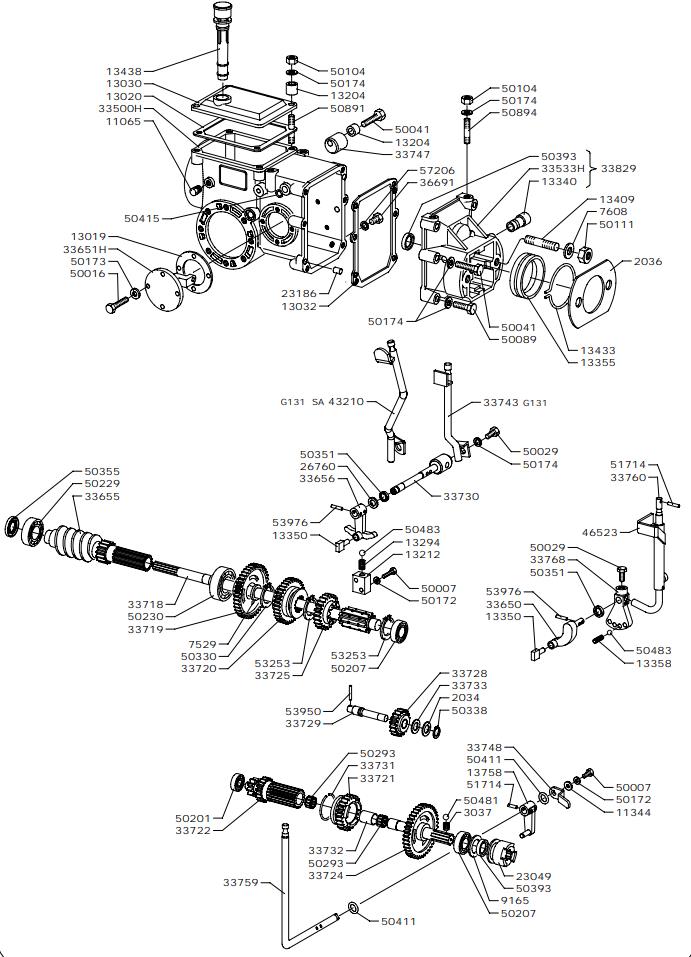

GEAR BOX(from s/n 200251 from 1991)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1106511065MALE HEXAGONAL PLUG£5.09 Add to
1134411344WASHER£2.95 Add to
1301913019GASKET£2.38 Add to
1302013020GASKET,COVER£3.43 Add to
1303213032GASKET,COVER£3.43 Add to
1320413204SPACER£3.52 Add to
1321213212LEVER SPRING SEAT£24.24 Add to
1329413294SPRING£2.60 Add to
1334013340BUSHING£5.68 Add to
1335013350DISK£5.17 Add to
1335513355BUSHING£30.67 Add to
1335813358SPRING£6.92 Add to
1340913409STUD£6.60 Add to
1343313433RING£4.61 Add to
1375813758PTO LEVER£32.84 Add to
20342034SPACER£3.02 Add to
20362036GASKET£3.43 Add to
2304923049COUPLING£48.43 Add to
2318623186PIN£4.95 Add to
2607826078LEVEL GAUGE£12.17 Add to
2676026760SPACER£2.87 Add to
30373037SPRING£4.44 Add to
33500H33500HGEAR BOX COVER 131TN£498.49 Add to
33533H33533HCOVER£156.18 Add to
3365033650LEVER£30.05 Add to
33651H33651HCOVER£55.50 Add to
3365533655WORM SCREW£269.10 Add to
3365633656LEVER£30.54 Add to
3371833718SHAFT£145.93 Add to
3371933719GEAR£71.93 Add to
3372033720GEAR£122.30 Add to
3372133721GEAR£91.38 Add to
3372233722FLANGE CONNECTION£139.87 Add to
3372433724SHAFT£142.03 Add to
3372533725GEAR£66.81 Add to
3372833728GEAR£49.28 Add to
3372933729PIN£19.74 Add to
3373033730PIN£56.23 Add to
3373133731RING£2.81 Add to
3373233732SPACER£5.04 Add to
3373333733RING£7.32 Add to
3374333743GEARSHIFT LEVER£21.07 Add to
3374733747RETAINER£7.61 Add to
3374833748SWITCH£12.75 Add to
3375933759PTO CONTROL LEVER£19.45 Add to
3376033760LEVER£15.15 Add to
3376833768BUSHING£31.17 Add to
3382933829COVER£172.90 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
4321043210GEARSHIFT LEVER£49.69 Add to
4652346523FLANGE CONNECTION£27.20 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5002950029SCREW£1.61 Add to
5004150041SCREW£1.81 Add to
5008950089SCREW£1.85 Add to
5010450104NUT£1.44 Add to
5011150111NUT£1.90 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5020150201BEARING£15.38 Add to
5020750207BEARING£8.85 Add to
5022950229BEARING£36.54 Add to
5023050230BEARING£41.01 Add to
5029350293ROLLER BEARING£14.50 Add to
5033050330CIRCLIP£1.76 Add to
5033850338CIRCLIP£1.42 Add to
5035150351SEAL RING£3.28 Add to
5035550355SEAL RING£2.95 Add to
5039350393SEAL RING£4.89 Add to
5041150411O-RING£1.36 Add to
5041550415O-RING£1.49 Add to
5048150481BALL£1.71 Add to
5048350483BALL£2.02 Add to
5089150891STUD£3.20 Add to
5089450894STUD£3.23 Add to
5171451714PIN£1.61 Add to
5325353253CIRCLIP£2.38 Add to
5395053950PIN£1.99 Add to
5397653976PIN£1.81 Add to
5720657206WASHER£1.44 Add to
75297529WASHER£5.75 Add to
76087608WASHER£4.93 Add to
91659165SPACER£3.41 Add to
