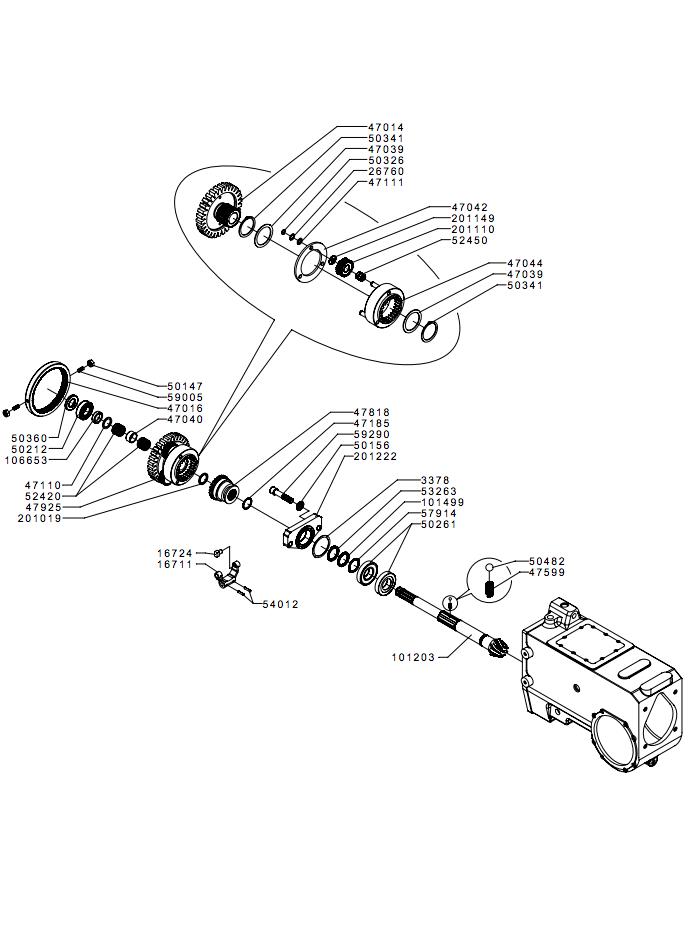

GEAR BOX(from s/n 344001 to s/n 537310 from 2005 to 2011)

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
101203	101203	PINION	£588.75	Add to
101499	101499	SPACER	£10.75	Add to
106653	106653	SPACER	£21.89	Add to
16711	16711	YOKE	£83.41	Add to
16724	16724	SKID PLATE	£6.60	Add to
201019	201019	WASHER	£5.78	Add to
201110	201110	IDLE PINION	£75.22	Add to
201149	201149	WASHER	£32.75	Add to
26760	26760	SPACER	£2.87	Add to
3378	3378	SPACER	£6.49	Add to
47014	47014	GEAR	£198.50	Add to
47016	47016	RING	£186.61	Add to
47039	47039	RING	£7.85	Add to
47040	47040	SPACER	£10.38	Add to
47042	47042	RING	£25.86	Add to
47044	47044	IDLE PINION	£390.46	Add to
47110	47110	SPACER	£22.06	Add to
47111	47111	SPACER	£3.88	Add to
47185	47185	RING	£5.47	Add to
47599	47599	SPRING	£9.22	Add to
47925	47925	Straight Handle Tube	N/A	POA
50147	50147	NUT	£1.44	Add to
50156	50156	WASHER	£1.44	Add to
50261	50261	BEARING	£64.12	Add to
50326	50326	CIRCLIP	£1.37	Add to
50341	50341	CIRCLIP	£2.97	Add to
50360	50360	SEAL RING	£5.20	Add to
50482	50482	BALL	£1.95	Add to
52420	52420	BEARING	£22.20	Add to
52448	52448	BEARING	£15.26	Add to
52450	52450	BEARING	£40.67	Add to
53263	53263	CIRCLIP	£3.68	Add to
54012	54012	PIN	£1.71	Add to
57914	57914	SPACER	£3.49	Add to
59005	59005	ALLEN SCREW	£2.36	Add to
