GEAR BOX(from s/n 537065 from 2010)

Parts list

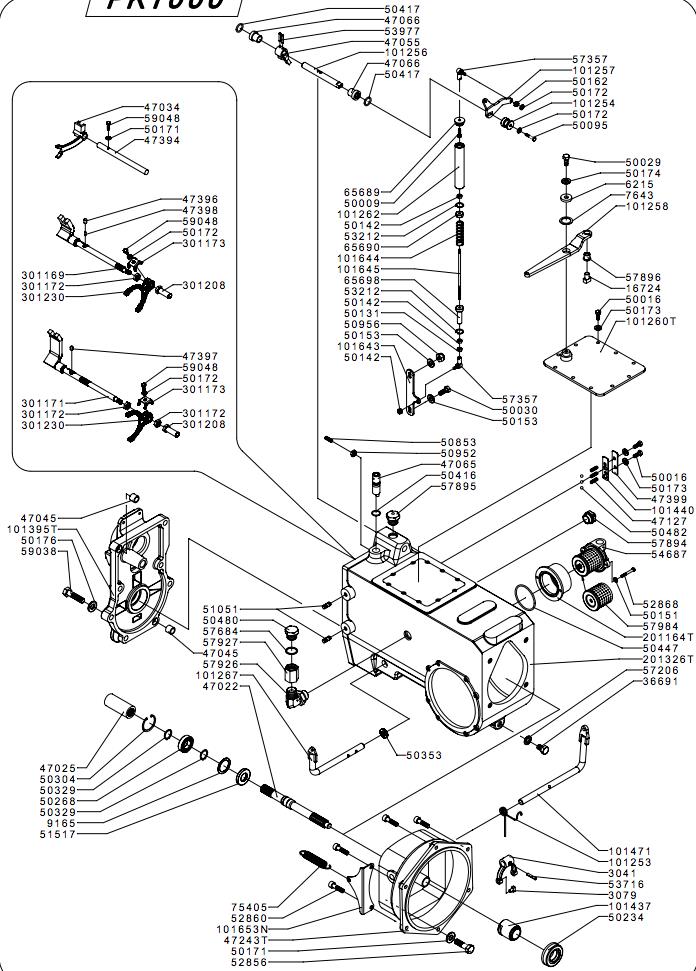

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101253101253LEVER SPRING£13.00 Add to
101254101254BUSHING£14.06 Add to
101256101256ROD£56.99 Add to
101258101258LEVER£20.75 Add to
101267101267LEVER£47.83 Add to
101395T101395TCOVER£500.77 Add to
101440101440SPACER£3.25 Add to
1672416724SKID PLATE£6.60 Add to
201164T201164TFLANGE£80.15 Add to
301169301169ROD£249.15 Add to
301171301171ROD£128.46 Add to
301172301172NUT£10.27 Add to
301173301173BRACKET£10.63 Add to
301208301208EXTENSION£16.23 Add to
301230301230YOKE£72.63 Add to
30413041CLUTCH YOKE£57.56 Add to
30793079SKID PLATE£5.69 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
4702247022SHAFT£92.79 Add to
4703447034DEVICE£76.13 Add to
4704547045BUSHING£14.57 Add to
4705547055LEVER£46.62 Add to
4706547065PLUNGER£50.00 Add to
4706647066BUSHING£27.88 Add to
4712747127SPRING£25.53 Add to
4739647396PIN£21.05 Add to
4739747397PIN£8.93 Add to
4739847398CYLINDER£22.25 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002950029SCREW£1.61 Add to
5003050030SCREW£1.64 Add to
5009550095SCREW£1.42 Add to
5013150131NUT£1.32 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015350153WASHER£1.34 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017650176WASHER£1.60 Add to
5023450234BEARING£56.76 Add to
5026850268BEARING£12.73 Add to
5030450304CIRCLIP£2.09 Add to
5032950329CIRCLIP£1.68 Add to
5035350353SEAL RING£4.07 Add to
5041650416O-RING£1.64 Add to
5041750417O-RING£1.59 Add to
5044750447O-RING£2.46 Add to
5048250482BALL£1.95 Add to
5085350853ALLEN SCREW£1.97 Add to
5095250952NUT£1.36 Add to
5095650956NUT£1.47 Add to
5105151051STUD£3.02 Add to
5151751517SEAL RING£5.41 Add to
5286052860SCREW£2.08 Add to
5286852868SCREW£1.89 Add to
5321253212CIRCLIP£1.49 Add to
5371653716SPRING PIN£1.56 Add to
5397753977PIN£1.79 Add to
5468754687OIL FILTER£70.69 Add to
5720657206WASHER£1.44 Add to
5735757357ARTICULATION£10.46 Add to
5768457684WASHER£2.36 Add to
5789457894PLUG£17.97 Add to
5789557895BREATHER CAP£20.45 Add to
5789657896BUSHING£4.15 Add to
5792657926ADAPTOR 90°£44.78 Add to
62156215WASHER£4.15 Add to
6568965689PLUG£5.18 Add to
6569065690BUSHING£11.11 Add to
7540575405SPRING BELT STRECHER£12.27 Add to
76437643SPACER£2.71 Add to
91659165SPACER£3.41 Add to
