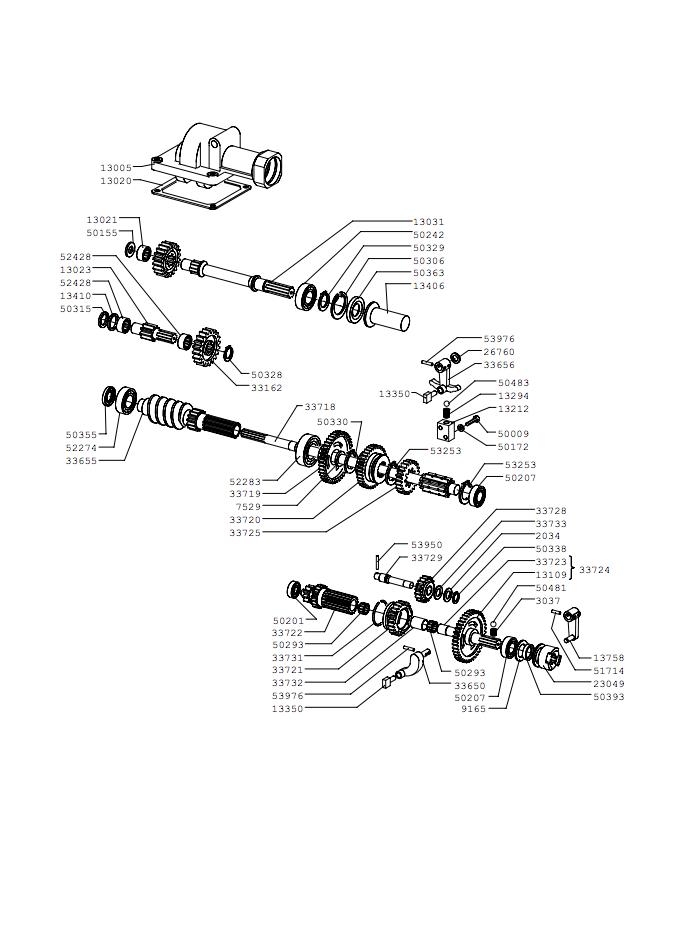

GEAR BOX(from sn 190643 from sn 190644 from 1995)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1302013020GASKET,COVER£3.43 Add to
1302113021GEAR£92.36 Add to
1302313023SHAFT£119.35 Add to
1303113031SHAFT£94.49 Add to
1321213212LEVER SPRING SEAT£24.24 Add to
1329413294SPRING£2.60 Add to
1335013350DISK£5.17 Add to
1341013410RING£8.81 Add to
1375813758PTO LEVER£32.84 Add to
20342034SPACER£3.02 Add to
2304923049COUPLING£48.43 Add to
2676026760SPACER£2.87 Add to
30373037SPRING£4.44 Add to
3316233162GEAR£90.22 Add to
3365033650LEVER£30.05 Add to
3365533655WORM SCREW£269.10 Add to
3365633656LEVER£30.54 Add to
3371833718SHAFT£145.93 Add to
3371933719GEAR£71.93 Add to
3372033720GEAR£122.30 Add to
3372133721GEAR£91.38 Add to
3372233722FLANGE CONNECTION£139.87 Add to
3372333723SHAFT£32.12 Add to
3372433724SHAFT£142.03 Add to
3372533725GEAR£66.81 Add to
3372833728GEAR£49.28 Add to
3372933729PIN£19.74 Add to
3373133731RING£2.81 Add to
3373233732SPACER£5.04 Add to
3373333733RING£7.32 Add to
5000950009SCREW£1.42 Add to
5015550155WASHER£1.42 Add to
5017250172WASHER£1.30 Add to
5020150201BEARING£15.38 Add to
5020750207BEARING£8.85 Add to
5024250242BEARING£17.26 Add to
5029350293ROLLER BEARING£14.50 Add to
5030650306CIRCLIP£2.31 Add to
5031550315BALL BRG 17MM ID X 40MM OD X 12MM£48.43 Add to
5032850328CIRCLIP£1.44 Add to
5032950329CIRCLIP£1.68 Add to
5033050330CIRCLIP£1.76 Add to
5033850338CIRCLIP£1.42 Add to
5035550355SEAL RING£2.95 Add to
5036350363SEAL RING£4.46 Add to
5039350393SEAL RING£4.89 Add to
5048150481BALL£1.71 Add to
5048350483BALL£2.02 Add to
5171451714PIN£1.61 Add to
5242852428ROLLER BEARING£44.49 Add to
5325353253CIRCLIP£2.38 Add to
5395053950PIN£1.99 Add to
5397653976PIN£1.81 Add to
75297529WASHER£5.75 Add to
91659165SPACER£3.41 Add to
