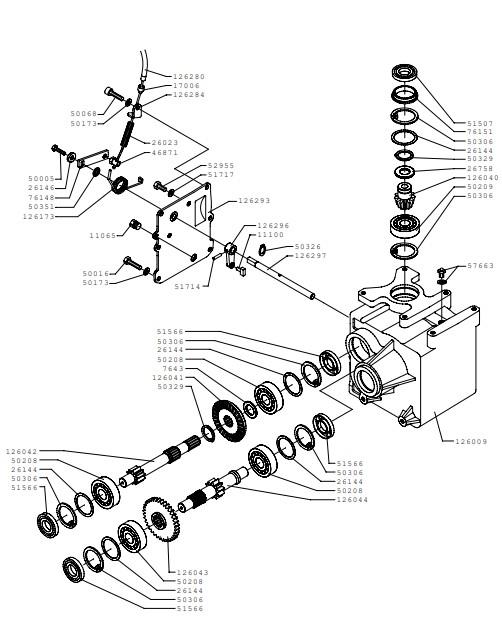

GEAR BOX (from sn 264001 to sn 345232 from 2001 to 2005)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1106511065MALE HEXAGONAL PLUG£5.09 Add to
1110011100DISK£4.27 Add to
126009126009GEARBOX£537.00 Add to
126040126040PINION£53.94 Add to
126041126041RING GEAR£72.74 Add to
126044126044SHAFT£74.60 Add to
126280126280WIRE£6.33 Add to
126284126284PLATE£3.41 Add to
126296126296LEVER£18.37 Add to
126297126297LEVER£23.18 Add to
1700617006BUSHING£51.96 Add to
2602326023SPRING£2.97 Add to
2614426144SPACER£3.41 Add to
2614626146WASHER£3.64 Add to
2675826758SPACER£3.19 Add to
4687146871CLAMP, CABLE£4.81 Add to
5000550005SHAFT -INPUT£1.53 Add to
5001650016SCREW£18.80 Add to
5006850068SCREW£1.52 Add to
5017350173WASHER£1.34 Add to
5020950209BEARING£15.55 Add to
5030650306CIRCLIP£2.31 Add to
5032650326CIRCLIP£1.37 Add to
5032950329CIRCLIP£1.68 Add to
5035150351SEAL RING£3.28 Add to
5150751507SEAL RING£4.94 Add to
5156651566SEAL RING£4.56 Add to
5171451714PIN£1.61 Add to
5171751717WASHER£2.43 Add to
5242952429BEARING£16.07 Add to
5295552955SCREW£1.59 Add to
5766357663BREATHER CAP£11.00 Add to
7614876148LEVER£3.97 Add to
7615176151BUSHING£18.12 Add to
76437643SPACER£2.71 Add to
