GEAR BOX (from sn 569455 from 2013)

Parts list

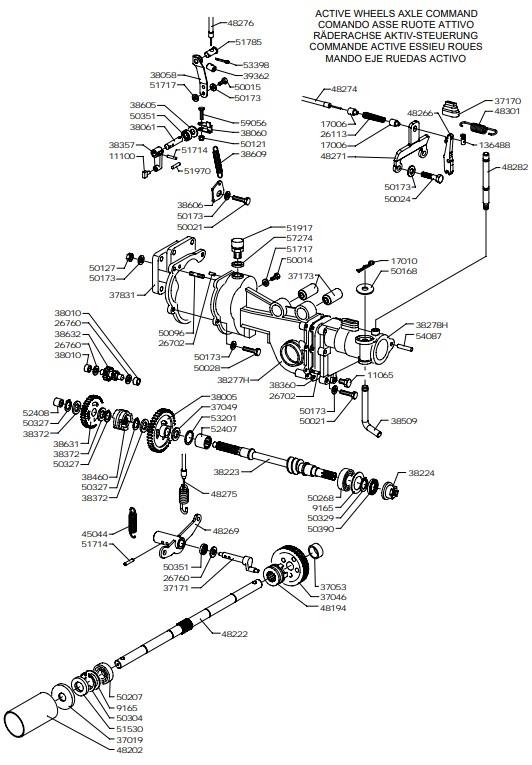

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1106511065MALE HEXAGONAL PLUG£5.09 Add to
1110011100DISK£4.27 Add to
136488136488CLAMP£3.75 Add to
1700617006BUSHING£51.96 Add to
1701017010SPLIT PIN£1.99 Add to
206222206222WIRE£26.68 Add to
206224206224WIRE£9.18 Add to
2611326113SPRING£3.64 Add to
2670226702PIN£4.37 Add to
2676026760SPACER£2.87 Add to
3701937019COVER£12.17 Add to
3704637046RING GEAR£129.77 Add to
3704937049WASHER£3.69 Add to
3705337053SPACER£5.18 Add to
3717037170BELLOWS£5.59 Add to
3717137171LEVER£44.31 Add to
3717337173SILENTBLOC£17.49 Add to
3783137831FLANGE£203.30 Add to
3800538005GEAR£61.00 Add to
3801038010BEARING£11.55 Add to
3805838058SUPPORT£14.48 Add to
3806038060LEVER£9.10 Add to
3806138061PIN£14.00 Add to
3822338223WORM SCREW£150.58 Add to
3822438224COUPLING£36.00 Add to
38277H38277HGEARBOX£259.68 Add to
38278H38278HCOVER£140.24 Add to
3835738357LEVER£18.28 Add to
3836038360GASKET£3.43 Add to
3837238372RING£3.97 Add to
3846038460COUPLING£51.14 Add to
3850938509PIN£8.81 Add to
3860538605SPACER£4.79 Add to
3860638606SMALL PLATE£3.53 Add to
3860938609LEVER SPRING£5.68 Add to
3863138631GEAR£63.06 Add to
3863238632SPROCKET£65.43 Add to
4504445044SPRING£7.74 Add to
4819448194COUPLING£45.76 Add to
4820248202WHEEL AXLE PROTECTION£16.46 Add to
4822248222AXLE£65.18 Add to
4826648266LEVER£8.59 Add to
4826948269LEVER£13.72 Add to
4827148271BRACKET£10.14 Add to
4827448274WIRE£8.59 Add to
4828248282PIN£11.54 Add to
4830148301SPRING£8.24 Add to
5001450014SCREW£1.44 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5009650096STUD£3.31 Add to
5012150121NUT£1.36 Add to
5012750127NUT£1.36 Add to
5016850168WASHER£1.45 Add to
5017350173WASHER£1.34 Add to
5020750207BEARING£8.85 Add to
5026850268BEARING£12.73 Add to
5030450304CIRCLIP£2.09 Add to
5032750327CIRCLIP£1.40 Add to
5032950329CIRCLIP£1.68 Add to
5035150351SEAL RING£3.28 Add to
5039050390SEAL RING£4.78 Add to
5153051530SEAL RING£5.33 Add to
5171451714PIN£1.61 Add to
5171751717WASHER£2.43 Add to
5178551785PAWL£4.36 Add to
5191751917PLUG£10.71 Add to
5197051970PIN£2.48 Add to
5240752407BEARING£54.89 Add to
5240852408ROLLER BEARING£7.16 Add to
5320153201CIRCLIP£1.99 Add to
5339853398SPLIT PIN£1.34 Add to
5408754087PIN£1.89 Add to
5727457274WASHER£1.47 Add to
5905659056SCREW£1.45 Add to
91659165SPACER£3.41 Add to
