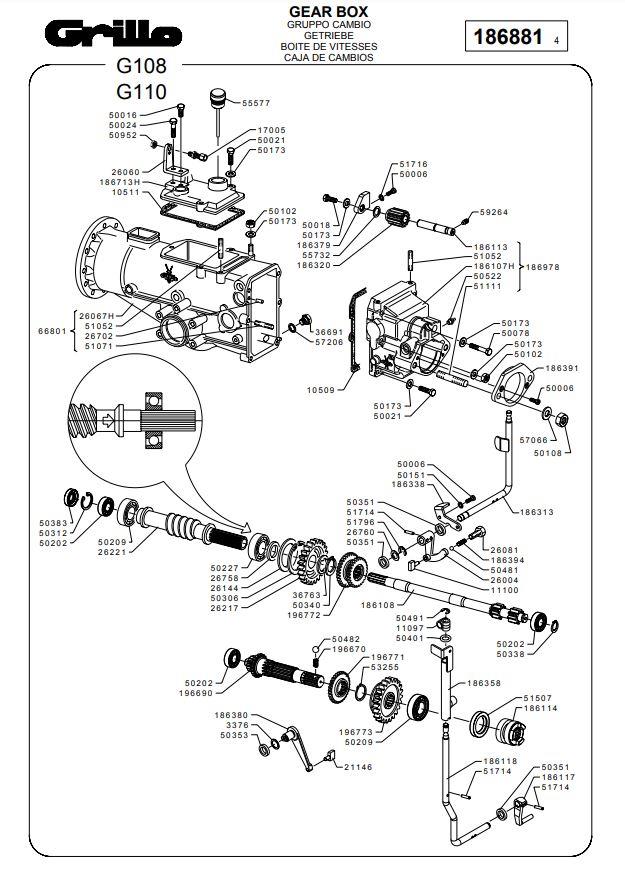

GEAR BOX (from sn 692503 from 2020)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1050910509GASKET£4.47 Add to
1051110511GASKET£3.43 Add to
1109711097GEARBOX ARTICULATION£3.34 Add to
1110011100DISK£4.27 Add to
1700517005ADJUSTER£5.27 Add to
186107H186107HCOVER£235.65 Add to
186108186108SHAFT£140.59 Add to
186113186113PIN£33.86 Add to
186114186114COUPLING£52.97 Add to
186117186117PTO LEVER£33.35 Add to
186118186118PTO CONTROL LEVER£32.45 Add to
186313186313GEARSHIFT LEVER£26.20 Add to
186320186320GEAR£52.26 Add to
186338186338LOCKING BRACKET£6.75 Add to
186358186358FLANGE CONNECTION£34.22 Add to
186379186379PLATE£10.82 Add to
186380186380LEVER£50.48 Add to
186391186391FLANGE CONNECTION£52.26 Add to
186394186394SPRING£2.99 Add to
186713H186713HCOVER£67.26 Add to
186978186978COVER£292.23 Add to
196670196670SPRING£8.15 Add to
196690196690SHAFT£167.45 Add to
196771196771GEAR£52.32 Add to
196772196772GEAR£117.48 Add to
196773196773GEAR£90.54 Add to
2114621146DISK£4.11 Add to
2114621146DISK£4.11 Add to
2600426004LEVER£27.64 Add to
2606026060SUPPORT£11.31 Add to
26067H26067HGEARBOX£366.89 Add to
2608126081SCREW£5.25 Add to
2614426144SPACER£3.41 Add to
2621726217GEAR£65.10 Add to
2622126221WORM SCREW£156.18 Add to
2670226702PIN£4.37 Add to
2675826758SPACER£3.19 Add to
2676026760SPACER£2.87 Add to
33763376SPACER£3.02 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
3676336763RING£6.94 Add to
5000650006SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5001850018SET SCREWN/A POA
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5010850108NUT£1.71 Add to
5015150151WASHER£1.28 Add to
5017350173WASHER£1.34 Add to
5020250202BEARING£8.33 Add to
5020950209BEARING£15.55 Add to
5022750227BEARING£40.58 Add to
5030650306CIRCLIP£2.31 Add to
5031250312CIRCLIP£1.71 Add to
5033850338CIRCLIP£1.42 Add to
5034050340CIRCLIP£1.45 Add to
5035150351SEAL RING£3.28 Add to
5035350353SEAL RING£4.07 Add to
5038350383SEAL RING£4.56 Add to
5040150401O-RING£0.30 Add to
5048150481BALL£1.71 Add to
5048250482BALL£1.95 Add to
5049150491RING SNAP£1.44 Add to
5052250522FITTING£2.27 Add to
5095250952NUT£1.36 Add to
5105251052STUD£1.76 Add to
5107151071STUD£2.51 Add to
5111151111STUD£4.11 Add to
5150751507SEAL RING£4.94 Add to
5171451714PIN£1.61 Add to
5171651716WASHER£0.15 Add to
5179651796RING SNAP£1.34 Add to
5325553255CIRCLIP£0.69 Add to
5557755577PLUG£8.10 Add to
5573255732SPACER£0.74 Add to
5706657066WASHER£1.86 Add to
5720657206WASHER£1.44 Add to
5926459264ALLEN SCREW£0.76 Add to
6680166801GEARBOX£368.45 Add to
