GEARBOX - 1ST V - UNTIL 521730 (G85) - 521743 (G85D) (from sn 228001 to sn 521743 from 1996 to 2009)

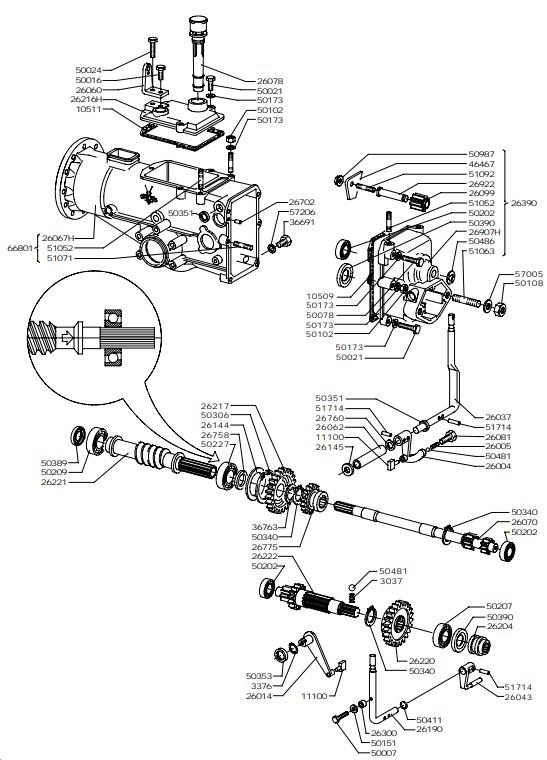

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1050910509GASKET£4.47 Add to
1051110511GASKET£3.43 Add to
1110011100DISK£4.27 Add to
2600426004LEVER£27.64 Add to
2601426014LEVER£32.00 Add to
2603726037GEARSHIFT LEVER£12.65 Add to
2604326043PTO LEVER£29.51 Add to
2606026060SUPPORT£11.31 Add to
2606226062SPACER£4.26 Add to
26067H26067HGEARBOX£366.89 Add to
2607026070SHAFT£127.45 Add to
2607826078LEVEL GAUGE£12.17 Add to
2608126081SCREW£5.25 Add to
2609926099GEAR£47.80 Add to
2614426144SPACER£3.41 Add to
2614526145SPACER£3.64 Add to
2619026190PTO CONTROL LEVER£19.45 Add to
2620426204COUPLING£35.57 Add to
26216H26216HCOVER£61.00 Add to
2621726217GEAR£65.10 Add to
2622026220GEAR£70.30 Add to
2622126221WORM SCREW£156.18 Add to
2622226222SHAFT£107.23 Add to
2630026300SPACER£3.43 Add to
2639026390GEAR BOX COVER ASB£198.60 Add to
2670226702PIN£4.37 Add to
2675826758SPACER£3.19 Add to
2676026760SPACER£2.87 Add to
2677526775GEAR£69.20 Add to
2692226922PIN£17.60 Add to
30373037SPRING£4.44 Add to
33763376SPACER£3.02 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
3676336763RING£6.94 Add to
4646746467PLATE£9.80 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5010850108NUT£1.71 Add to
5015150151WASHER£1.28 Add to
5017350173WASHER£1.34 Add to
5020250202BEARING£8.33 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5022750227BEARING£40.58 Add to
5030650306CIRCLIP£2.31 Add to
5034050340CIRCLIP£1.45 Add to
5035150351SEAL RING£3.28 Add to
5035350353SEAL RING£4.07 Add to
5038950389SEAL RING£4.46 Add to
5039050390SEAL RING£4.78 Add to
5041150411O-RING£1.36 Add to
5048150481BALL£1.71 Add to
5048650486RING SNAP£1.52 Add to
5098750987NUT£2.72 Add to
5105251052STUD£1.76 Add to
5107151071STUD£2.51 Add to
5109251092STUD£1.97 Add to
5171451714PIN£1.61 Add to
5700557005WASHER£1.60 Add to
5720657206WASHER£1.44 Add to
5945059450STUD£3.62 Add to
6680166801GEARBOX£368.45 Add to
