GEARBOX - 2ndV - FROM 521564(from s/n 521564 to s/n 592041 from 2009 to 2015)

Parts list

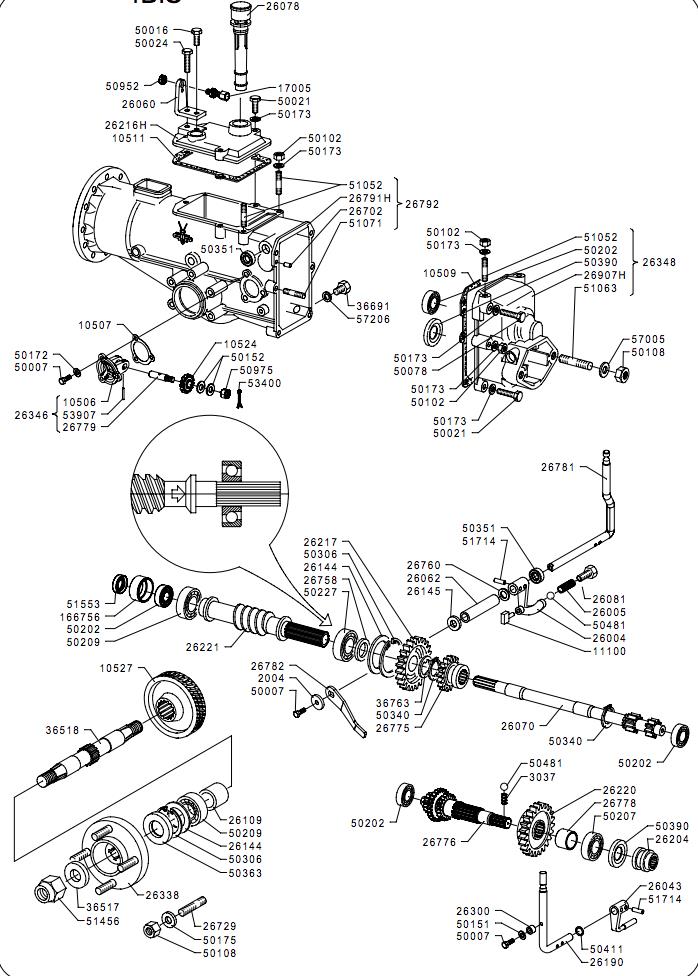

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1050610506COVER£32.79 Add to
1050710507GASKET,COVER£3.81 Add to
1050910509GASKET£4.47 Add to
1051110511GASKET£3.43 Add to
1052410524GEAR£53.46 Add to
1052710527RING GEAR£154.70 Add to
166756166756BUSHING£11.16 Add to
1700517005ADJUSTER£5.27 Add to
20042004WASHER£3.69 Add to
2604326043PTO LEVER£29.51 Add to
2606026060SUPPORT£11.31 Add to
2606226062SPACER£4.26 Add to
2607026070SHAFT£127.45 Add to
2607826078LEVEL GAUGE£12.17 Add to
2610926109SPACER£5.61 Add to
2614426144SPACER£3.41 Add to
2614526145SPACER£3.64 Add to
2619026190PTO CONTROL LEVER£19.45 Add to
2620426204COUPLING£35.57 Add to
26216H26216HCOVER£61.00 Add to
2621726217GEAR£65.10 Add to
2622026220GEAR£70.30 Add to
2622126221WORM SCREW£156.18 Add to
2630026300SPACER£3.43 Add to
2633826338WHEEL HUB£59.85 Add to
2634626346COVER£51.27 Add to
2634826348COVER£146.24 Add to
2670226702PIN£4.37 Add to
2672926729STUD£3.04 Add to
2675826758SPACER£3.19 Add to
2676026760SPACER£2.87 Add to
2677526775GEAR£69.20 Add to
2677626776SHAFT£296.54 Add to
2677826778SPACER£8.54 Add to
2677926779PIN£19.63 Add to
2678126781GEARSHIFT LEVER£31.17 Add to
2678226782SWITCH£11.58 Add to
2679226792GEARBOX£379.60 Add to
30373037SPRING£4.44 Add to
3651736517WASHER£3.64 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
3676336763RING£6.94 Add to
5000750007SCREW£1.50 Add to
500096500096TOOL KIT£78.16 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5010850108NUT£1.71 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017550175WASHER£1.42 Add to
5020250202BEARING£8.33 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5022750227BEARING£40.58 Add to
5030650306CIRCLIP£2.31 Add to
5034050340CIRCLIP£1.45 Add to
5035150351SEAL RING£3.28 Add to
5036350363SEAL RING£4.46 Add to
5039050390SEAL RING£4.78 Add to
5041150411O-RING£1.36 Add to
5048150481BALL£1.71 Add to
5095250952NUT£1.36 Add to
5097550975NUT£2.26 Add to
5105251052STUD£1.76 Add to
5107151071STUD£2.51 Add to
5145651456NUT£3.79 Add to
5155351553SEAL RING£5.03 Add to
5171451714PIN£1.61 Add to
5340053400SPLIT PIN£1.36 Add to
5390753907PIN£1.40 Add to
5700557005WASHER£1.60 Add to
5720657206WASHER£1.44 Add to
5945059450STUD£3.62 Add to
