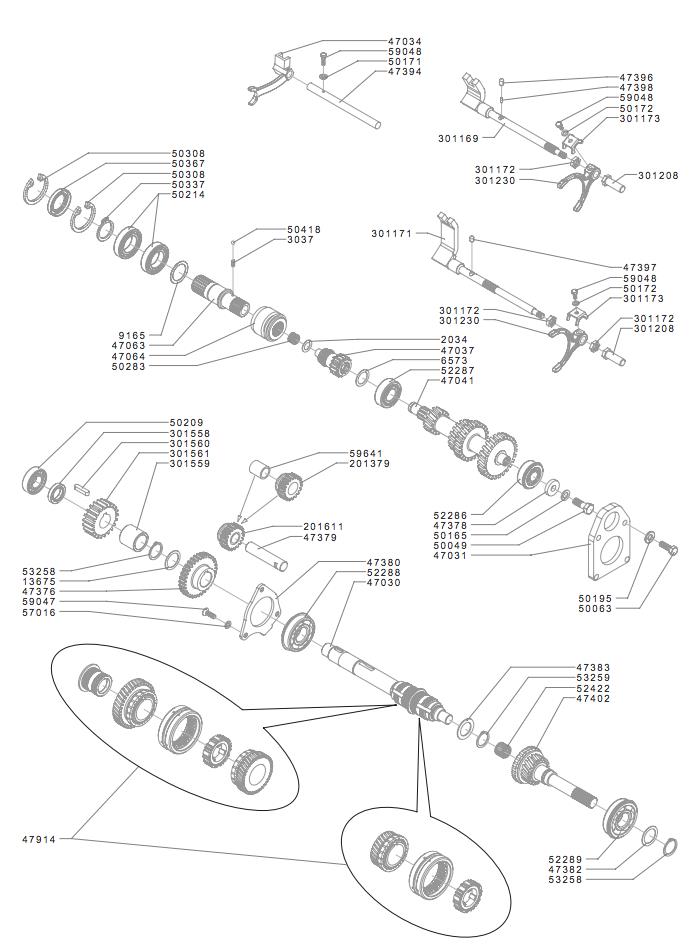

GEARBOX(from s/n 563890 from s/n 563890 from 2013)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
201611201611GEAR£145.28 Add to
20342034SPACER£3.02 Add to
301169301169ROD£249.15 Add to
301171301171ROD£128.46 Add to
301172301172NUT£10.27 Add to
301173301173BRACKET£10.63 Add to
301208301208EXTENSION£16.23 Add to
301230301230YOKE£72.63 Add to
301558301558SPACER£16.86 Add to
301559301559SPACER£18.66 Add to
301561301561GEAR£292.48 Add to
30373037SPRING£4.44 Add to
4703047030SHAFT£167.68 Add to
4703447034DEVICE£76.13 Add to
4703747037DOG£105.93 Add to
4704147041PIN£9.40 Add to
4706347063SHAFT£259.55 Add to
4706447064COUPLING£54.22 Add to
4737647376GEAR£50.00 Add to
4739647396PIN£21.05 Add to
4739747397PIN£8.93 Add to
4739847398CYLINDER£22.25 Add to
4740247402SHAFT£152.42 Add to
5004950049SCREW£2.04 Add to
5006350063SCREW£1.61 Add to
5017250172WASHER£1.30 Add to
5019550195WASHER£1.45 Add to
5020950209BEARING£15.55 Add to
5021450214BEARING£29.33 Add to
5028350283ROLLER BEARING£13.26 Add to
5030850308CIRCLIP£2.27 Add to
5033750337CIRCLIP£1.95 Add to
5036750367SEAL RING£7.25 Add to
5041850418O-RING£2.15 Add to
5228652286BEARING£196.14 Add to
5228752287BEARING£185.32 Add to
5228852288BEARING£51.66 Add to
5228952289BEARING£200.19 Add to
5242252422ROLLER BEARING£16.90 Add to
5325853258CIRCLIP£2.71 Add to
5325953259CIRCLIP£2.94 Add to
5587755877SPACER£3.04 Add to
5701657016WASHER£1.41 Add to
5964159641BUSHING£9.68 Add to
65736573SPACER£2.70 Add to
91659165SPACER£3.41 Add to
