GRASS CUTTER 65-75 cm(from s/n 228001 from 1996)

Parts list

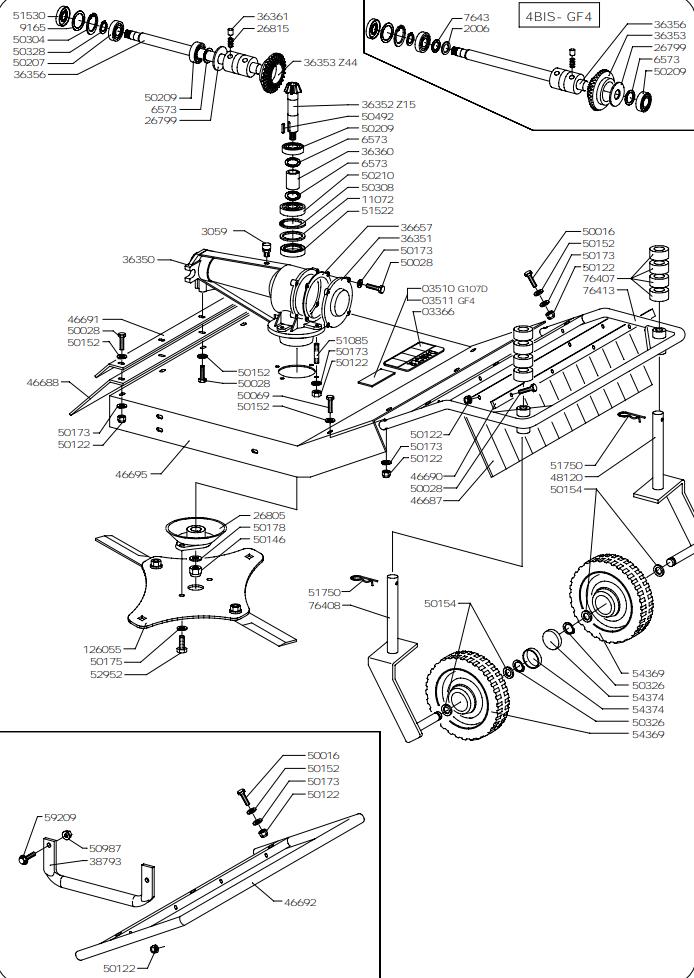

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0336603366STICKER£3.28 Add to
1107211072SPACER£3.49 Add to
146965146965CUTTING BLADE£87.68 Add to
20062006SPACER£4.15 Add to
2679926799WASHER£8.24 Add to
2681526815SPRING£4.89 Add to
3635236352PINION£89.40 Add to
3635336353RING GEAR£106.27 Add to
3635636356SHAFT£185.95 Add to
3636136361PIN£5.86 Add to
3665736657GASKET£3.89 Add to
4668746687GUARD£34.64 Add to
4668846688GUARD£33.30 Add to
4669146691BRACKET£26.31 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5006950069SCREW£1.59 Add to
5012250122NUT£1.44 Add to
5014650146SHAFT£16.72 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017350173WASHER£1.34 Add to
5017550175WASHER£1.42 Add to
5017850178WASHER£1.97 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5030450304CIRCLIP£2.09 Add to
5030850308CIRCLIP£2.27 Add to
5032650326CIRCLIP£1.37 Add to
5032850328CIRCLIP£1.44 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5098750987NUT£2.72 Add to
5152251522SEAL RING£6.30 Add to
5153051530SEAL RING£5.33 Add to
5175051750SPLIT PIN£1.89 Add to
5243552435BEARING£16.28 Add to
5295252952SCREW£2.27 Add to
5436954369WHEEL£22.82 Add to
5437454374GUARD£1.47 Add to
5920959209SCREW£1.49 Add to
65736573SPACER£2.70 Add to
7640776407SPACER£3.57 Add to
7640876408YOKE£35.32 Add to
76437643SPACER£2.71 Add to
91659165SPACER£3.41 Add to
