GRASS CUTTER COMPACT - BLADES & TRANS.(from s/n 228001 from 1996)

Parts list

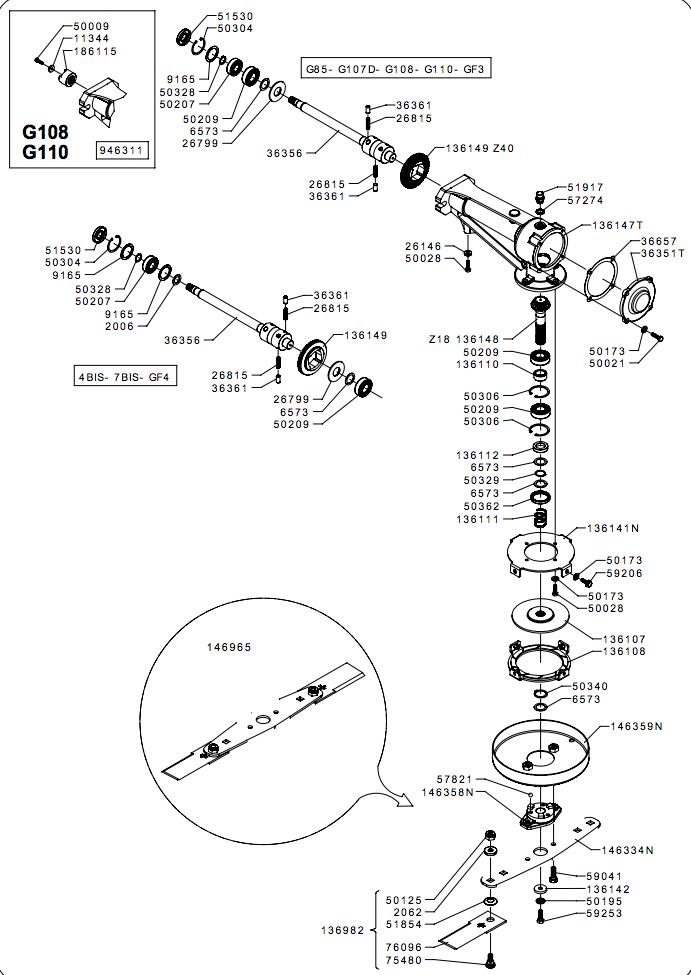

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1134411344WASHER£2.95 Add to
136107136107COULPING£92.08 Add to
136108136108SUPPORT£62.18 Add to
136110136110SPACER£5.99 Add to
136111136111BRAKE SPRING£3.94 Add to
136112136112RING£24.34 Add to
136141N136141NBRACKET£35.47 Add to
136142136142WASHER£4.71 Add to
136147T136147TGEARBOX£256.27 Add to
136148136148PINION£96.93 Add to
136149136149RING GEAR£74.54 Add to
136982136982CUTTING BLADE£65.58 Add to
146334N146334NCENTRAL CASING£36.11 Add to
146358N146358NBLADE HOLDER HUB£67.07 Add to
146965146965CUTTING BLADE£87.68 Add to
186115186115COUPLING£44.14 Add to
20062006SPACER£4.15 Add to
20622062WASHER£3.77 Add to
2614626146WASHER£3.64 Add to
2679926799WASHER£8.24 Add to
2681526815SPRING£4.89 Add to
36351T36351TCOVER£51.55 Add to
3635636356SHAFT£185.95 Add to
3636136361PIN£5.86 Add to
3665736657GASKET£3.89 Add to
5000950009SCREW£1.42 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5012550125NUT£1.58 Add to
5017350173WASHER£1.34 Add to
5019550195WASHER£1.45 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5030450304CIRCLIP£2.09 Add to
5030650306CIRCLIP£2.31 Add to
5032850328CIRCLIP£1.44 Add to
5032950329CIRCLIP£1.68 Add to
5034050340CIRCLIP£1.45 Add to
5036250362SEAL RING£4.85 Add to
5153051530SEAL RING£5.33 Add to
5185451854BELLEVILLE SPRING£2.60 Add to
5191751917PLUG£10.71 Add to
5727457274WASHER£1.47 Add to
5782157821BALL£1.74 Add to
5904159041SCREW£2.42 Add to
5920659206SCREW£1.49 Add to
5925359253SCREW£2.09 Add to
65736573SPACER£2.70 Add to
7548075480BLADE PIN£11.58 Add to
7609676096CUTTING BLADE£19.44 Add to
91659165SPACER£3.41 Add to
